1100-8M0021648 Tilt End Cap Seal Guide Assembly for Mercury Mariner | JLM Marine

Tilt End Cap Seal Guide Assembly – Fits Mercury Mariner Generation 1, 2 & 3 3-Ram Style Trim Units

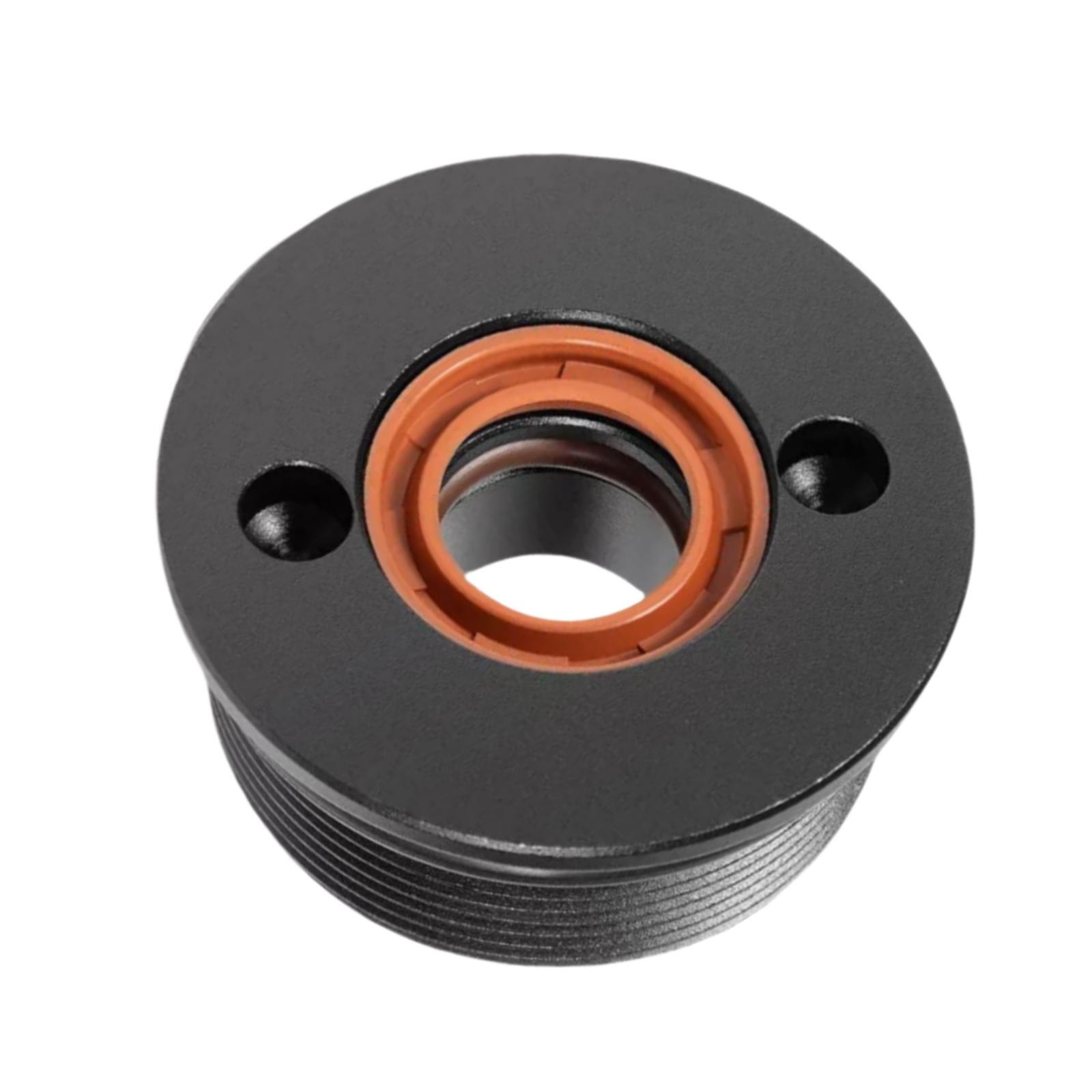

This Tilt End Cap Seal Guide Assembly is engineered as a direct replacement for Mercury Mariner Generation 1, 2, and 3 three-ram style trim units. Manufactured from aircraft-grade aluminum with Viton and high-grade urethane seals, it delivers professional-level reliability and durability for demanding marine environments.

This assembly directly replaces OEM part numbers 1100-8M0021648, 99638A1, 8M0021648, and 878243A1, restoring optimal trim cylinder performance and extending service life.

• Constructed from aircraft-grade aluminum with hard anodized coating (Type 3 military-grade) for anti-wear, rust resistance, and anti-oxidation
• Includes Viton and high-grade urethane seals for superior sealing performance
• Perfect replacement for worn or damaged trim cylinder end caps—significantly improves work efficiency

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket sources:

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here's a guide to help you identify your engine's serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Technical Specifications

Package Contents

Each package includes:

• 1 × Tilt Cap/Gland with Seals
• All components shown in the product images

Installation Guide

1. Disconnect the battery and relieve all hydraulic pressure from the trim/tilt system before beginning work.
2. Remove the trim cylinder from the outboard motor following your engine's service manual procedures.
3. Carefully disassemble the old end cap assembly, noting the orientation of seals and components.
4. Clean the cylinder bore and piston rod thoroughly, inspecting for scoring or damage.
5. Lubricate the new seals with marine-grade hydraulic fluid before installation.
6. Install the new end cap seal guide assembly, ensuring all seals are properly seated and oriented.
7. Torque the end cap to manufacturer specifications (refer to your Mercury service manual).
8. Reinstall the trim cylinder onto the outboard motor, ensuring proper alignment.
9. Refill the hydraulic system with the correct type and quantity of trim/tilt fluid.
10. Bleed air from the system by cycling the trim/tilt mechanism several times.
11. Check for leaks around the end cap and all hydraulic connections.
12. Test the trim/tilt operation under no-load and normal operating conditions before returning to service.

Troubleshooting & FAQ

Q: How do I confirm this fits my Mercury trim unit?
A: This assembly is designed for Mercury Mariner Generation 1, 2, and 3 three-ram style trim units. Cross-reference your current part number (1100-8M0021648, 99638A1, 8M0021648, or 878243A1) or consult the Mercury parts diagrams linked above to verify compatibility with your specific model.

Q: What are the signs that my trim cylinder end cap needs replacement?
A: Common symptoms include hydraulic fluid leaking from the end cap area, slow or inconsistent trim/tilt operation, loss of hydraulic pressure, or visible seal damage during inspection. If you notice any of these issues, replacing the end cap assembly can restore proper function.

Q: How does this aftermarket assembly compare to the OEM part in terms of materials?
A: This assembly is constructed from aircraft-grade aluminum with a Type 3 military-grade hard anodized coating, paired with Viton and high-grade urethane seals. These materials meet or exceed OEM specifications for durability, corrosion resistance, and sealing performance in marine environments.

Q: Can I install this myself or do I need a professional?
A: Installation requires disassembly of the trim cylinder, proper torque specifications, and bleeding the hydraulic system. If you have mechanical experience and the appropriate tools, DIY installation is possible. However, professional installation is recommended to ensure safety and optimal performance.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
