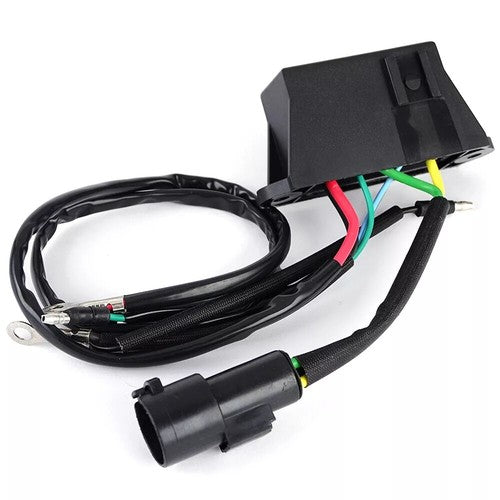

Trim & Tilt Relay Assembly for Honda BF35 BF40 BF45 BF50 | OEM 38550-ZV5-823

This Trim & Tilt Relay Assembly is engineered to fit Honda outboard motors in the BF35, BF40, BF45, and BF50 series. Designed as a direct replacement for OEM part numbers 38550-ZV5-822 and 38550-ZV5-823, this relay assembly ensures reliable operation of your engine's trim and tilt system across a wide range of model configurations.

Whether you operate a mid-range BF40 or a BF50 with power trim and tilt, this assembly provides the electrical control necessary for smooth, responsive performance. It is compatible with long shaft, extra-long shaft, and various control configurations including remote, tiller, and electric start models.

• Direct replacement for Honda OEM part numbers 38550-ZV5-822 and 38550-ZV5-823
• Fits multiple BF35, BF40, BF45, and BF50 engine configurations from various production years
• Essential component for reliable trim and tilt system operation

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket sources.

Compatible Engine Models

Confirm your engine model/year in the table below.

Package Contents

This package includes:

• 1 × Trim & Tilt Relay Assembly

The package contains all the parts shown in the product images.

Installation Guide

1. Disconnect the battery: Remove the negative terminal first to ensure no electrical current flows during installation.
2. Locate the existing relay assembly: It is typically mounted near the engine's electrical panel or trim/tilt motor housing.
3. Disconnect the wiring harness: Carefully unplug all electrical connectors from the old relay assembly, noting their positions.
4. Remove mounting hardware: Unscrew or unbolt the old relay from its mounting bracket.
5. Position the new relay assembly: Align the new relay in the same orientation as the original unit.
6. Secure with hardware: Fasten the relay using the original screws or bolts, ensuring a snug fit.
7. Reconnect wiring harness: Attach each connector to the corresponding terminal on the new relay, ensuring a secure connection.
8. Reconnect the battery: Reattach the negative terminal to restore power to the system.
9. Test trim and tilt operation: Cycle the trim/tilt system up and down to verify proper relay function.
10. Inspect for issues: Listen for unusual clicking sounds or verify smooth motor operation. If problems occur, recheck all connections.

Troubleshooting & FAQ

Q: How do I confirm this relay assembly fits my Honda outboard?
A: Cross-reference your engine's model and configuration code (e.g., BF50A4 LRTD) with the compatibility table above. Additionally, verify your original part number matches 38550-ZV5-822 or 38550-ZV5-823.

Q: What are the signs that my trim & tilt relay needs replacement?
A: Common symptoms include the trim/tilt system not responding to switch inputs, intermittent operation, clicking sounds without motor engagement, or complete failure of the trim/tilt function.

Q: How does this aftermarket relay compare to the Honda OEM part?
A: This aftermarket relay is built to OEM specifications with comparable materials and electrical ratings. It provides the same functionality and fitment as the original Honda part at a more competitive price point.

Q: Can I install this relay myself, or do I need a professional?
A: If you have basic mechanical skills and familiarity with marine electrical systems, you can install this relay following the guide above. However, professional installation is recommended to ensure correct wiring and system safety.

Q: Is this an OEM or aftermarket part?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
