VRO Fuel Pump Repair Kit – Fits Johnson Evinrude V4/V6 90° Looper & Crossflow 120-275HP (Replaces V4690)

VRO Fuel Pump Repair Kit – Fits Johnson Evinrude V4/V6 90° Looper & Crossflow 120-275HP (Replaces V4690)

This VRO fuel pump repair kit is designed for specific Johnson and Evinrude 90° V4 and V6 outboard engines. It serves as a direct replacement for models requiring an external bracket mount on the engine block, restoring fuel system performance.

This kit is a direct replacement for Johnson/Evinrude part numbers V4690, 438400, and 5004558, as well as QuickMarine V4690.

• Fitment: Compatible with Johnson/Evinrude V4 90° (120-140HP) and V6 90° (175-275HP) Looper and Crossflow models.
• Installation: Mounts externally on the engine block. Note that some V6 models require minor bracket modification for a proper fit.
• Complete Kit: Includes a new fuel pump, hoses, bolts, and zip ties for a comprehensive installation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

Technical Specifications

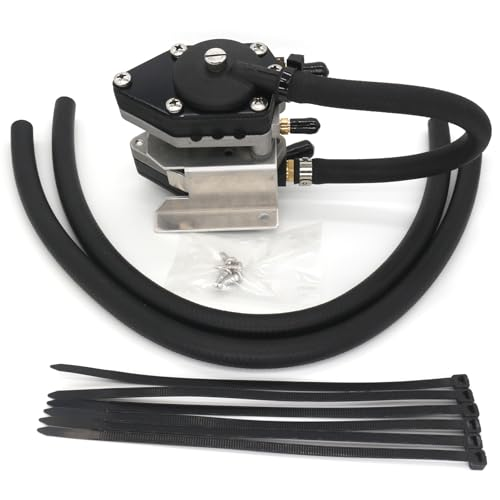

Package Contents

• 1 x Fuel pump
• 2 x Hoses
• 4 x Bolts
• 6 x Zip ties
• 1 x Install instruction

Installation Guide

1. Safety First: Disconnect the battery and ensure the engine is cool. Work in a well-ventilated area away from any open flames or sparks.
2. Locate Pump: Identify the old VRO fuel pump, which is externally mounted on the engine block.
3. Disconnect Lines: Carefully label and disconnect the fuel and oil lines connected to the pump. Have rags ready to catch any spillage.
4. Remove Old Pump: Unbolt the old pump and its bracket from the engine block.
5. Bracket Modification (if needed): For V6 Looper and Crossflow models, you may need to cut a small section of the new pump's aluminum bracket to ensure a flush fit. V4 models do not require this modification.
6. Mount New Pump: Secure the new fuel pump and bracket onto the engine block using the provided bolts.
7. Reconnect Lines: Attach the fuel and oil hoses to the correct barbed connectors on the new pump. Secure them with clamps.
8. Prime System: Prime the fuel system according to your engine’s service manual to ensure there is no air in the lines.
9. Final Checks: Reconnect the battery. Start the engine and carefully check for any leaks around the pump and hose connections.

Troubleshooting & FAQ

How do I confirm this kit fits my engine?
First, check the "Compatible Engine Models" table. This kit is for Johnson/Evinrude 90° V4 and V6 engines. V4 models (120-140HP) are a direct fit. Most V6 models (175-275HP) require a minor modification to the mounting bracket, which involves cutting a small section to ensure it sits flush. Always compare the product images to your existing part.

My engine is a V6. What modification is required?
For most 90° V6 Looper and Crossflow engines, a small section of the aluminum mounting bracket must be cut off for proper clearance and fitment. This is a known requirement for these specific engine applications and is detailed in the installation notes.

What are the signs of a failing VRO fuel pump?
Common signs include difficulty starting the engine, poor acceleration, engine stalling at idle or low speeds, and inconsistent fuel delivery. If you notice these symptoms, it may be time to inspect and replace the fuel pump.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
