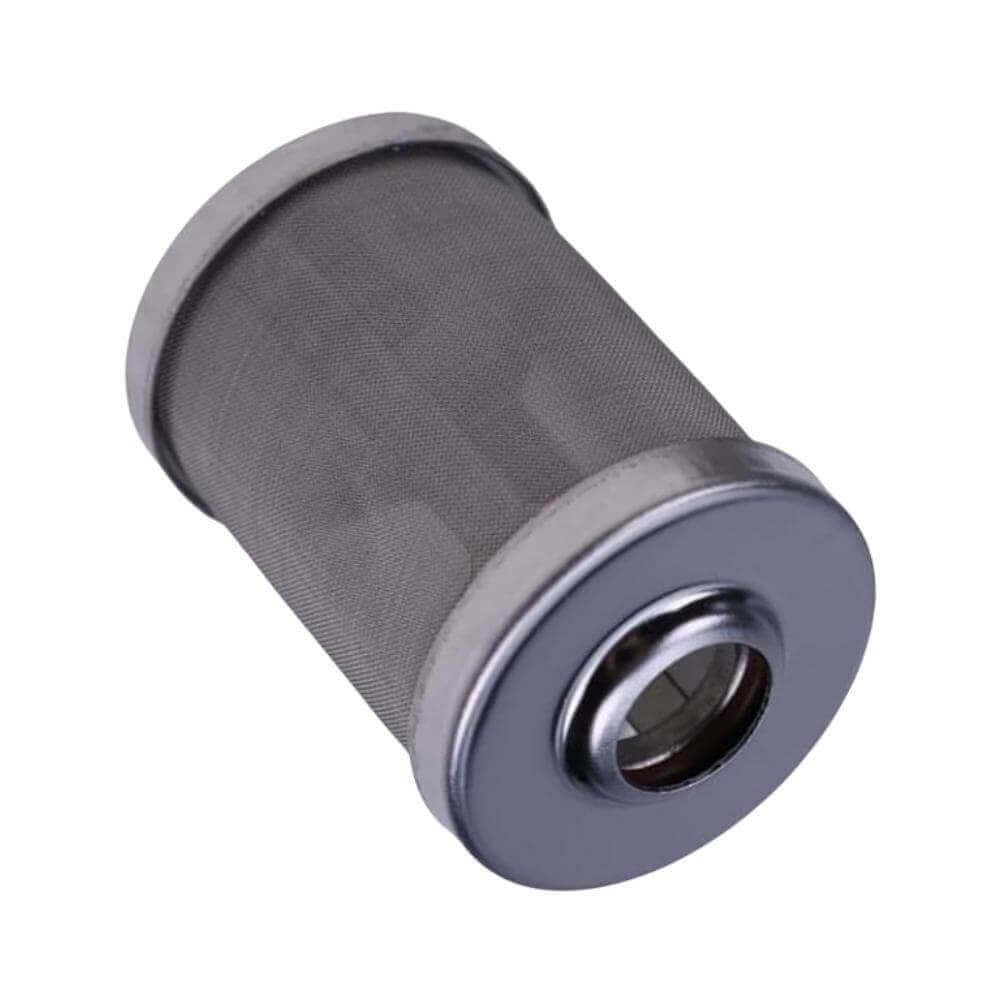

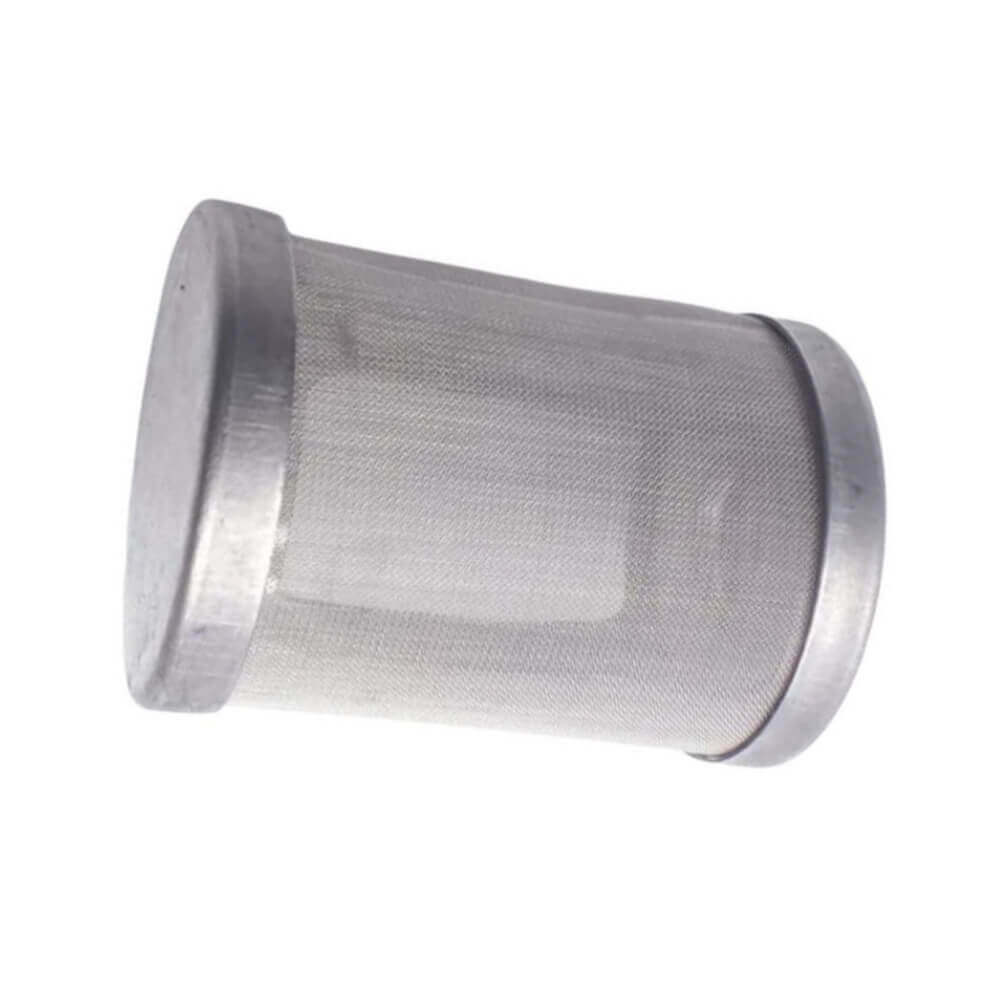

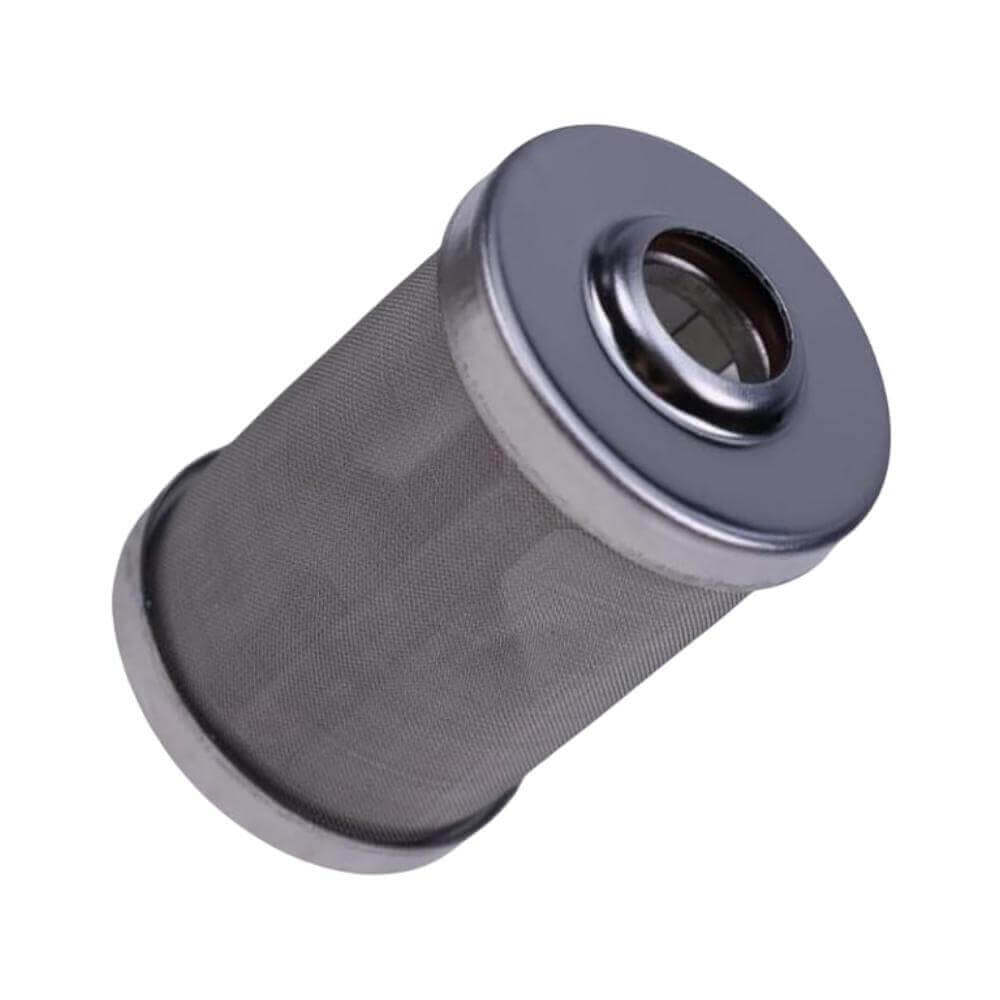

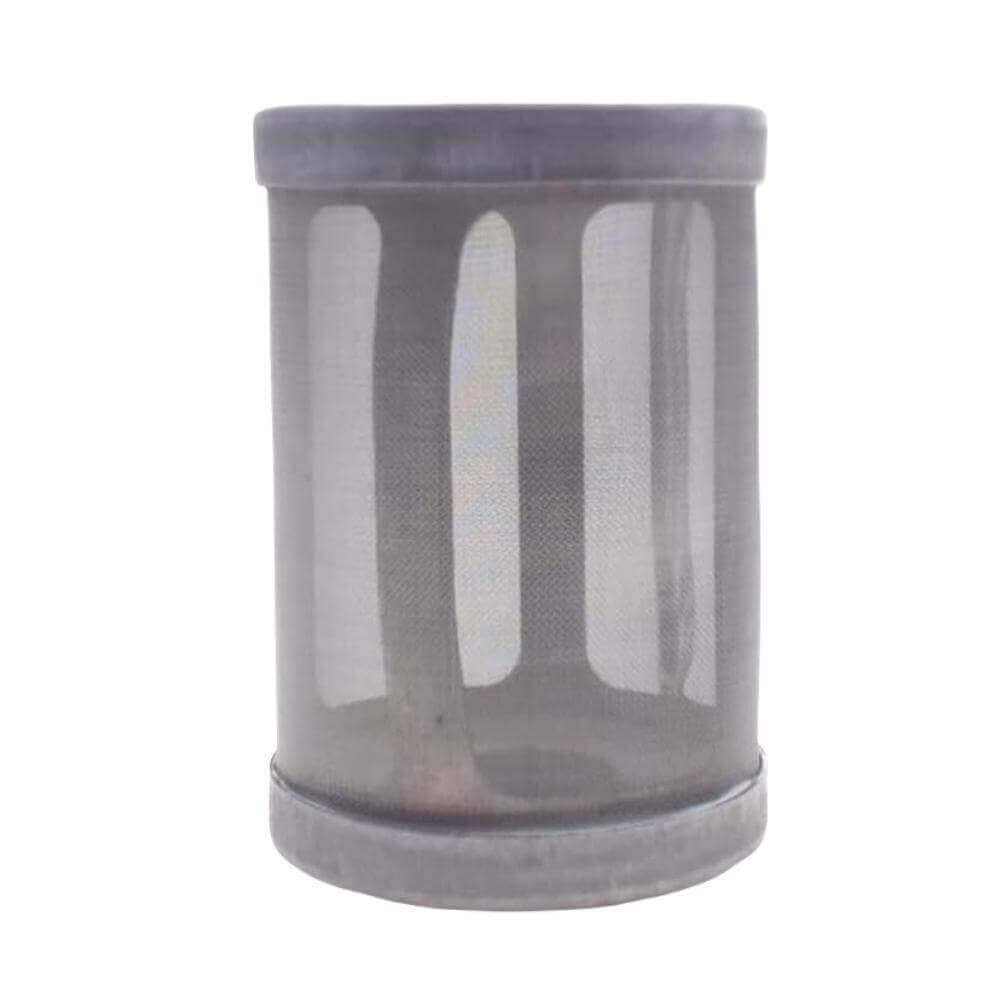

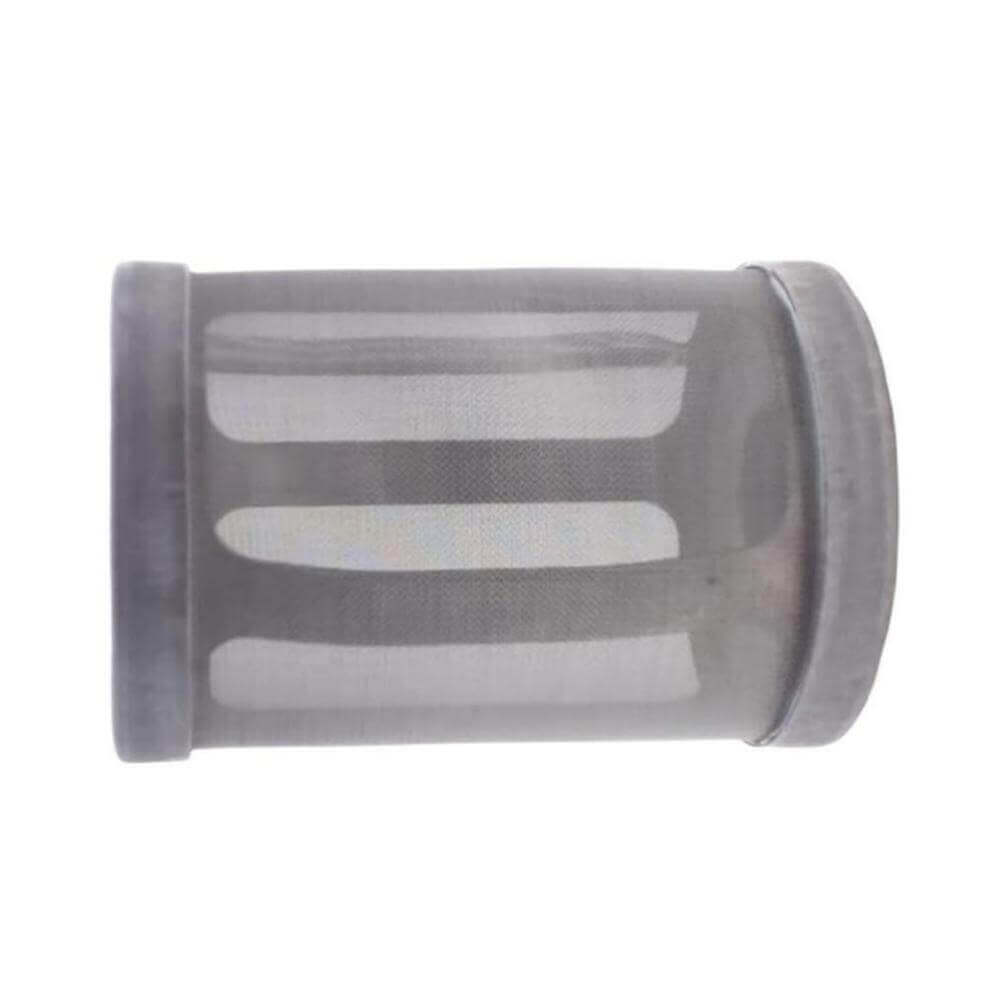

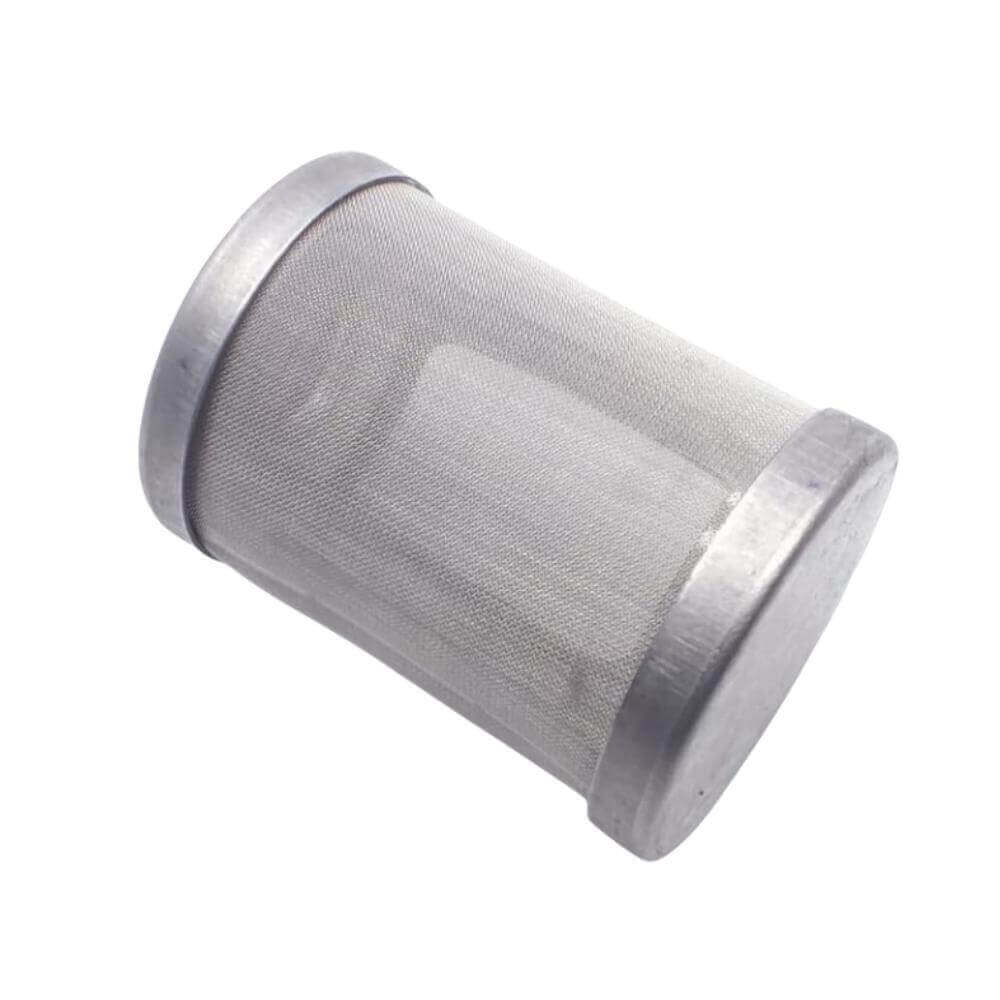

Primary Fuel Filter Element – Fits Yamaha 115-250 HP Outboards (Replaces 61A-24563-00-00)
This primary fuel filter element is designed to protect your engine's fuel injection system and carburetors from impurities. It fits a range of Yamaha V6 outboards, including C115, C150 (1997 and newer), S225, S250, L225, and L250 (1990-1996) models.
This component is a direct replacement for Yamaha part number 61A-24563-00-00 and other equivalents.
-
Installation Type: Installs in the OEM in-line housing.
-
Fuel Compatibility: Designed for gasoline-fueled engines.
-
Package Contents: Includes one primary fuel filter element.
Part Number Cross-Reference
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand |
Part Number |
Yamaha |
61A-24563-00-00 |
Sierra |
18-7782 |
Sierra |
SIE18-7782 |
REC |
61A-24563-00 |
Compatible Engine Models
Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.
Brand |
Model |
Rated HP |
Years |
OEM Part No. |
Notes |
Yamaha |
C115 |
115 |
1997 and newer |
61A-24563-00-00 |
- |
Yamaha |
C150 |
150 |
1996 and newer |
61A-24563-00-00 |
- |
Yamaha |
L225 |
225 |
1994-1996 |
61A-24563-00-00 |
- |
Yamaha |
S225 |
225 |
1996 |
61A-24563-00-00 |
- |
Yamaha |
L250 |
250 |
1990-1996 |
61A-24563-00-00 |
- |
Yamaha |
S250 |
250 |
1996 |
61A-24563-00-00 |
- |
Technical Specifications
Specification |
Value |
Product Type |
Primary Fuel Filter Element |
Installation |
In-line, OEM housing compatible |
Fuel Type |
Gasoline |
Housing Material |
Hydrocarbons and salt-resistant materials |
Housing Color |
White |
Dimensions |
68.1 mm H × 31.9 mm W × 17.5 mm D (2.68" × 1.26" × 0.69") |
Weight |
0.06 kg (0.13 lbs) |
Warranty |
Varies by retailer (typically 1 year) |
Other Technical Attributes |
Designed to protect fuel injection systems and carburetors from impurities |
Package Contents
- 1 x Primary Fuel Filter Element (61A-24563-00-00)
Explosion Diagram
Installation Guide
- Turn off the engine and disconnect the battery terminals for safety.
- Locate the primary fuel filter housing on your engine.
- Place a suitable container or absorbent rag beneath the housing to catch any fuel spillage.
- Carefully unscrew the filter bowl from the housing assembly. It may be tight.
- Remove the old filter element and discard it responsibly. Note its orientation.
- Clean the interior of the filter bowl and housing, removing any sediment or debris.
- Insert the new filter element into the housing, ensuring it is properly seated.
- Reinstall the filter bowl, making sure the seal or O-ring is in place and correctly aligned.
- Hand-tighten the bowl firmly, but do not overtighten to avoid damaging the threads or seal.
- Reconnect the battery.
- Prime the fuel system according to your engine's service manual to fill the new filter with fuel.
- Start the engine and carefully inspect the filter housing for any signs of leaks.
Troubleshooting & FAQ
Q: How do I confirm this filter fits my engine?
A: Verify your engine's model and year against the compatibility chart above. This filter is a direct replacement for Yamaha part number 61A-24563-00-00 and fits specific C-series, S-series, and L-series outboards from the 1990s and newer. Comparing the images to your old part is also recommended.
Q: What are the signs my fuel filter needs to be replaced?
A: Common symptoms of a clogged fuel filter include engine hesitation, loss of power, difficulty starting, stalling at low speeds, or rough idling. This occurs when contaminants restrict fuel flow to the engine.
Q: How often should I replace this filter?
A: For optimal performance and engine protection, it is recommended to replace the primary fuel filter annually or every 100 hours of operation, whichever comes first. Refer to your Yamaha service manual for specific maintenance intervals.
Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
Important Notes
- Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
- This product is an aftermarket replacement part and is not an OEM component.
- Professional installation is recommended to ensure safety and optimal performance.
