Water Pump Impeller Kit – Fits Yamaha F6/F8/F9.9 4-Stroke Outboards (Replaces 68T-W0078-00-00)

Water Pump Impeller Kit – Fits Yamaha F6/F8/F9.9 4-Stroke Outboards

This water pump impeller repair kit provides a complete solution for servicing the cooling system on select Yamaha 4-Stroke outboards from 6 to 9.9 HP (model years 2000–2019). It is designed to fit a range of models, including the F6A/F6B, F8C, F8F, F9.9F, and F9.9J series.

The kit serves as a direct replacement for Yamaha OEM parts 68T-W0078-00-00, 68T-W0078-01-00, and 68T-W0078-02-00, along with other aftermarket equivalents. It includes all necessary components for a standard water pump rebuild.

• Engineered to meet or exceed OEM specifications for fit and performance.
• Restores cooling system efficiency to prevent overheating.
• Includes impeller, housing components, seals, and hardware for a complete installation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

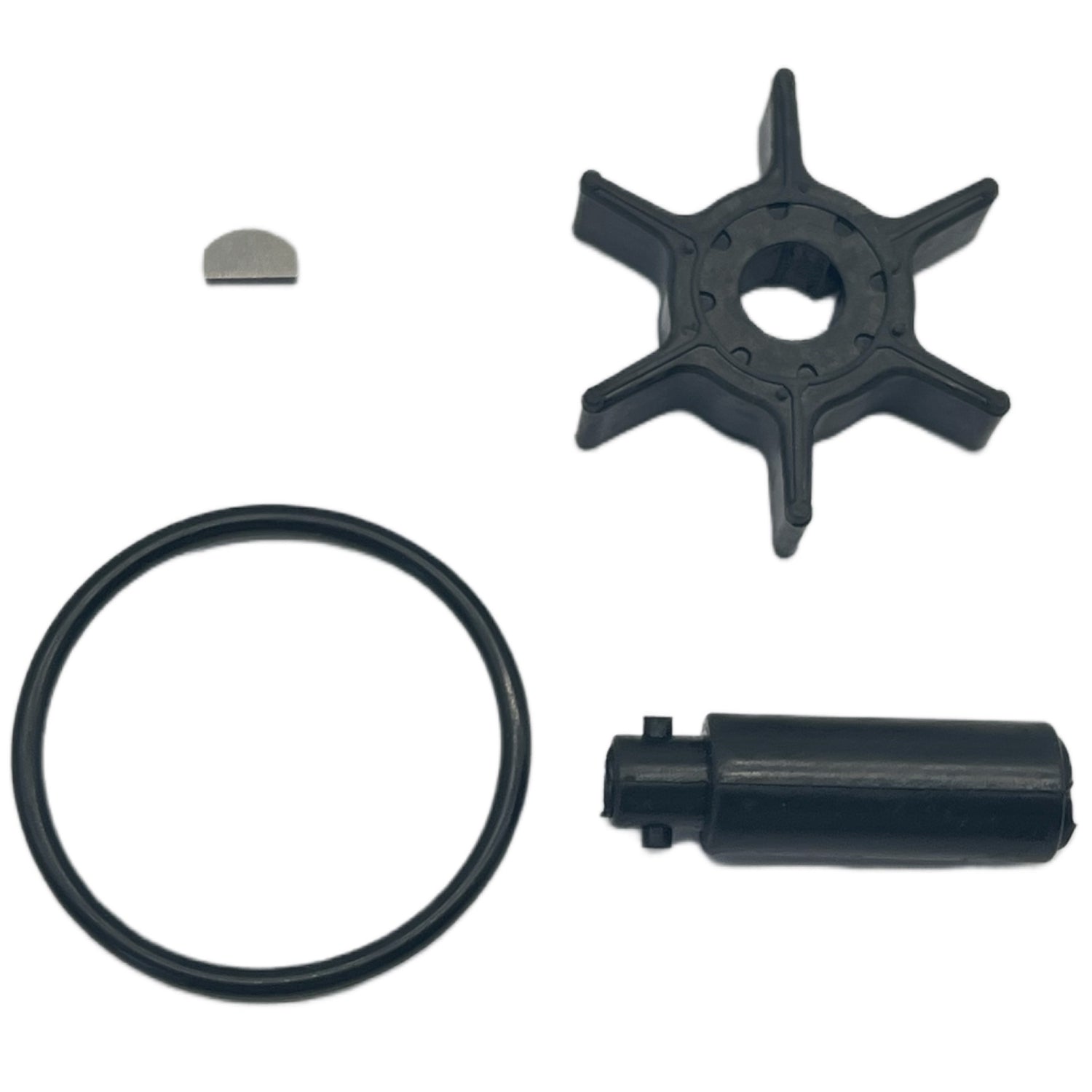

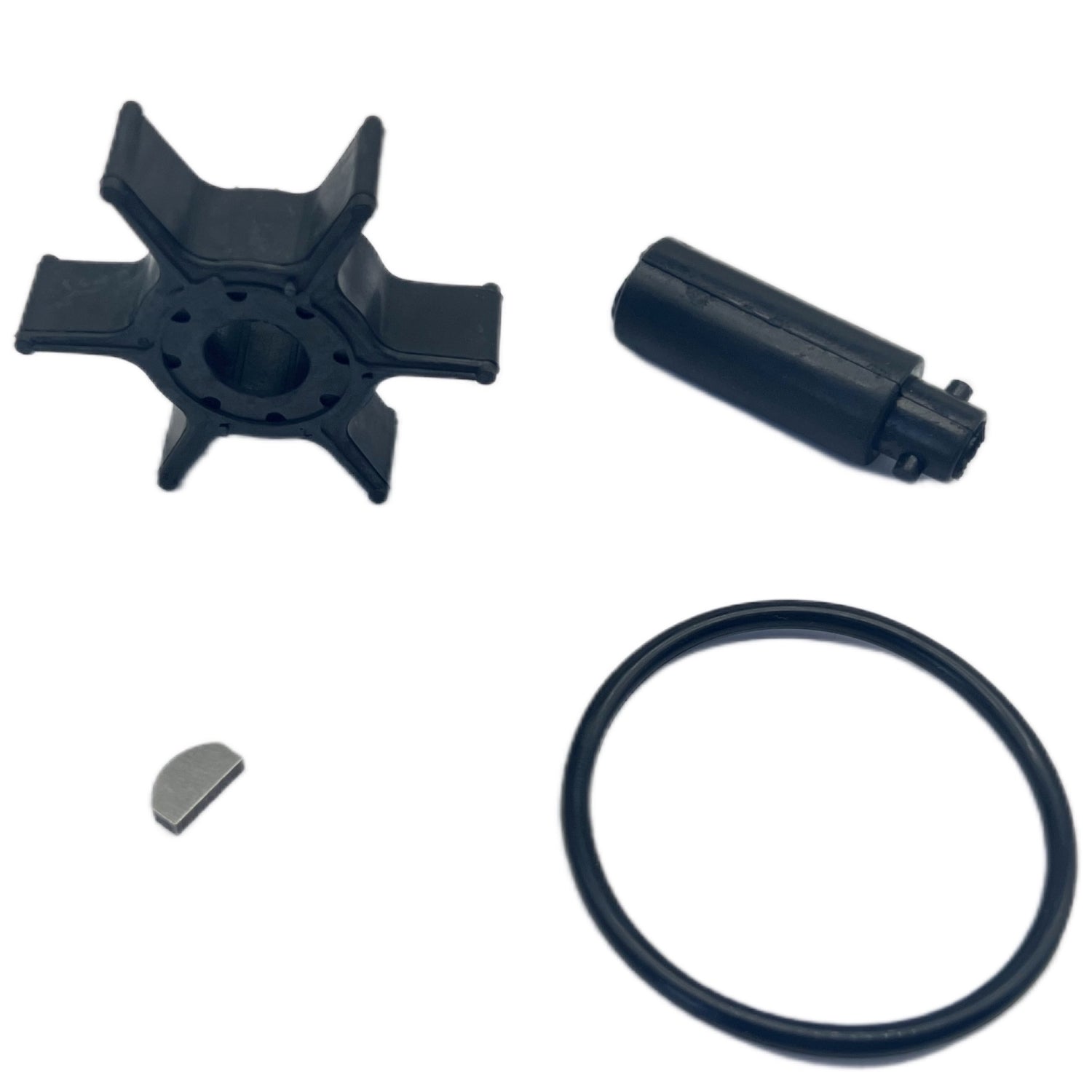

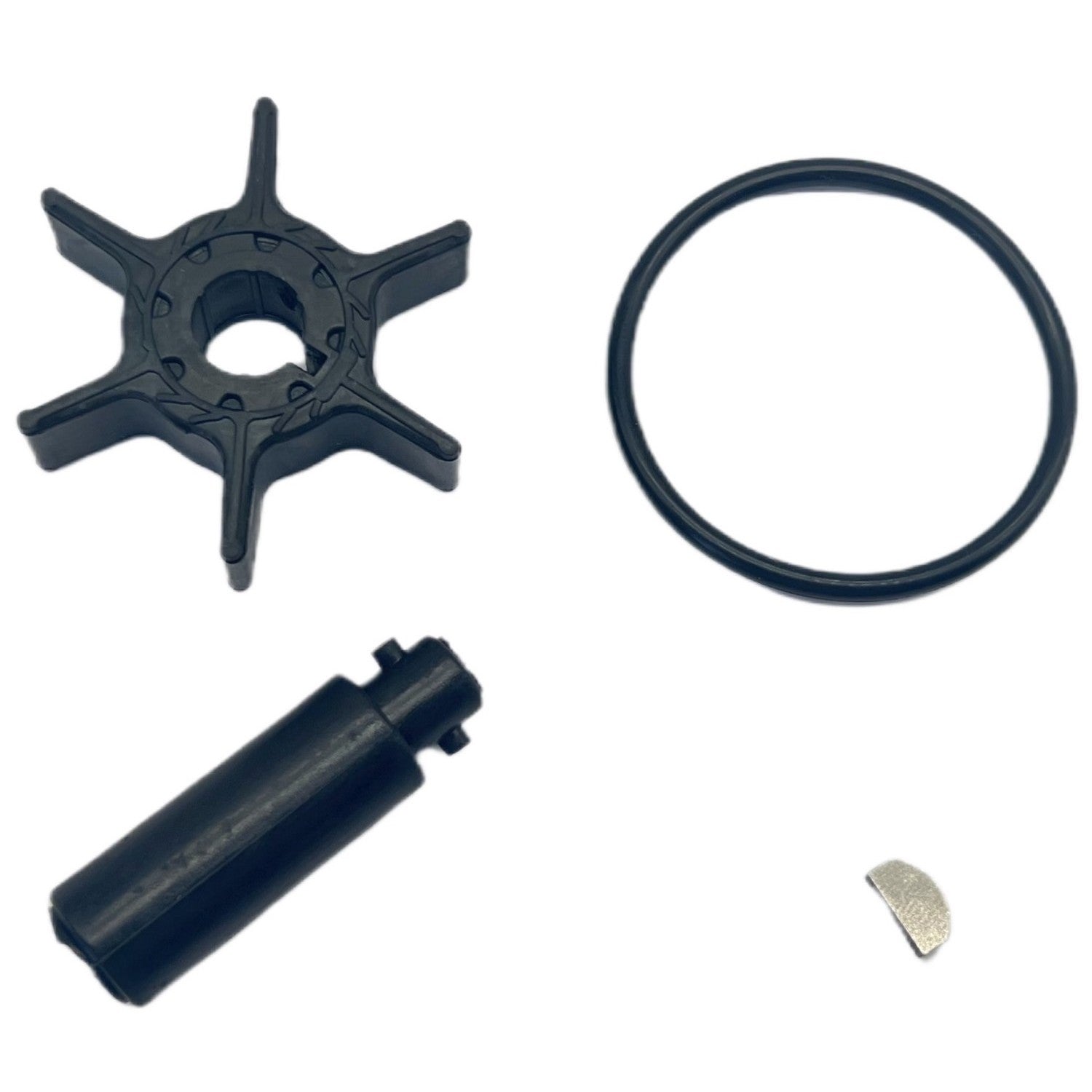

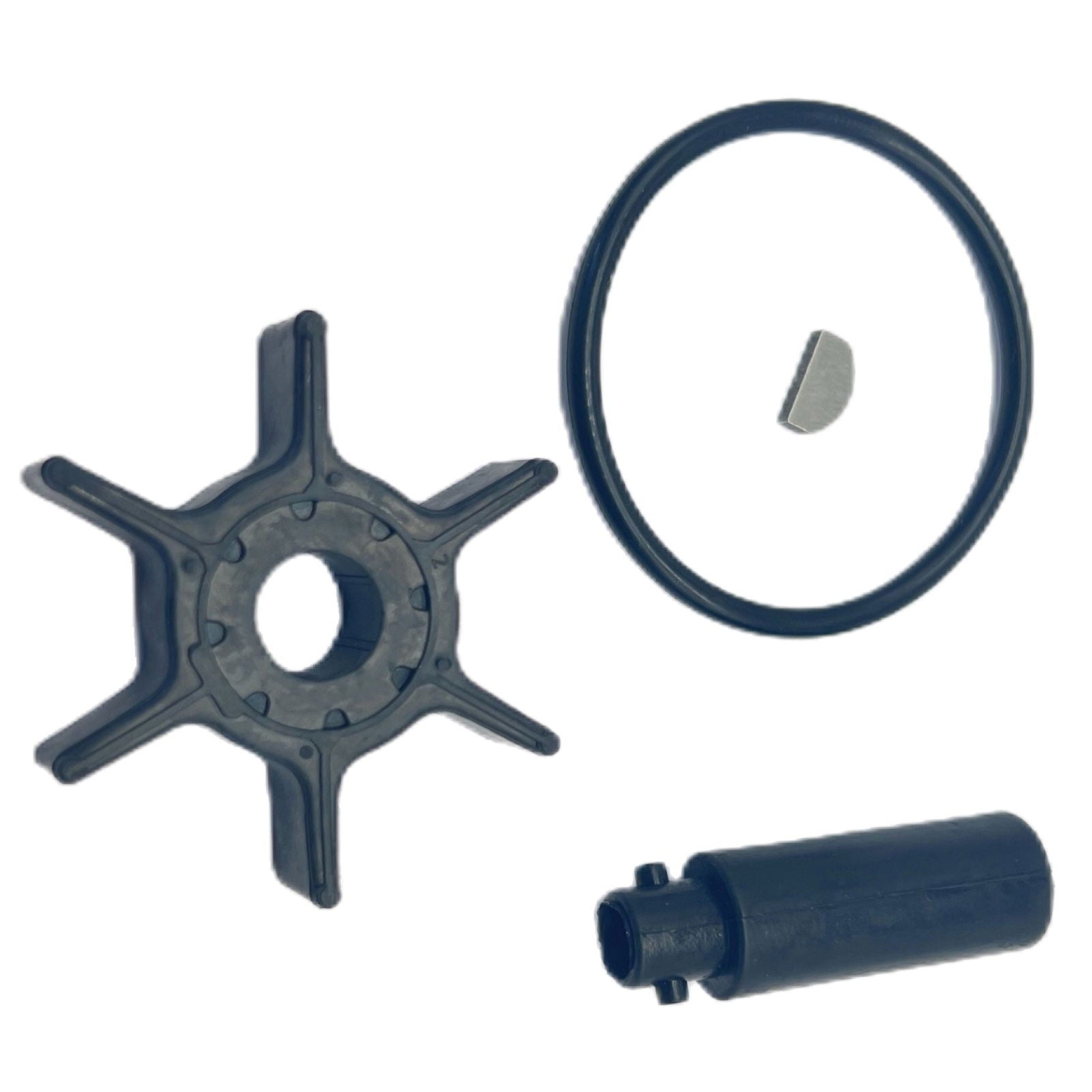

Package Contents

• 1 x Cartridge Insert (63V-44322-00-00)
• 1 x Water Seal Damper 2 (68T-44366-00-00 / 68T-44366-01-00)

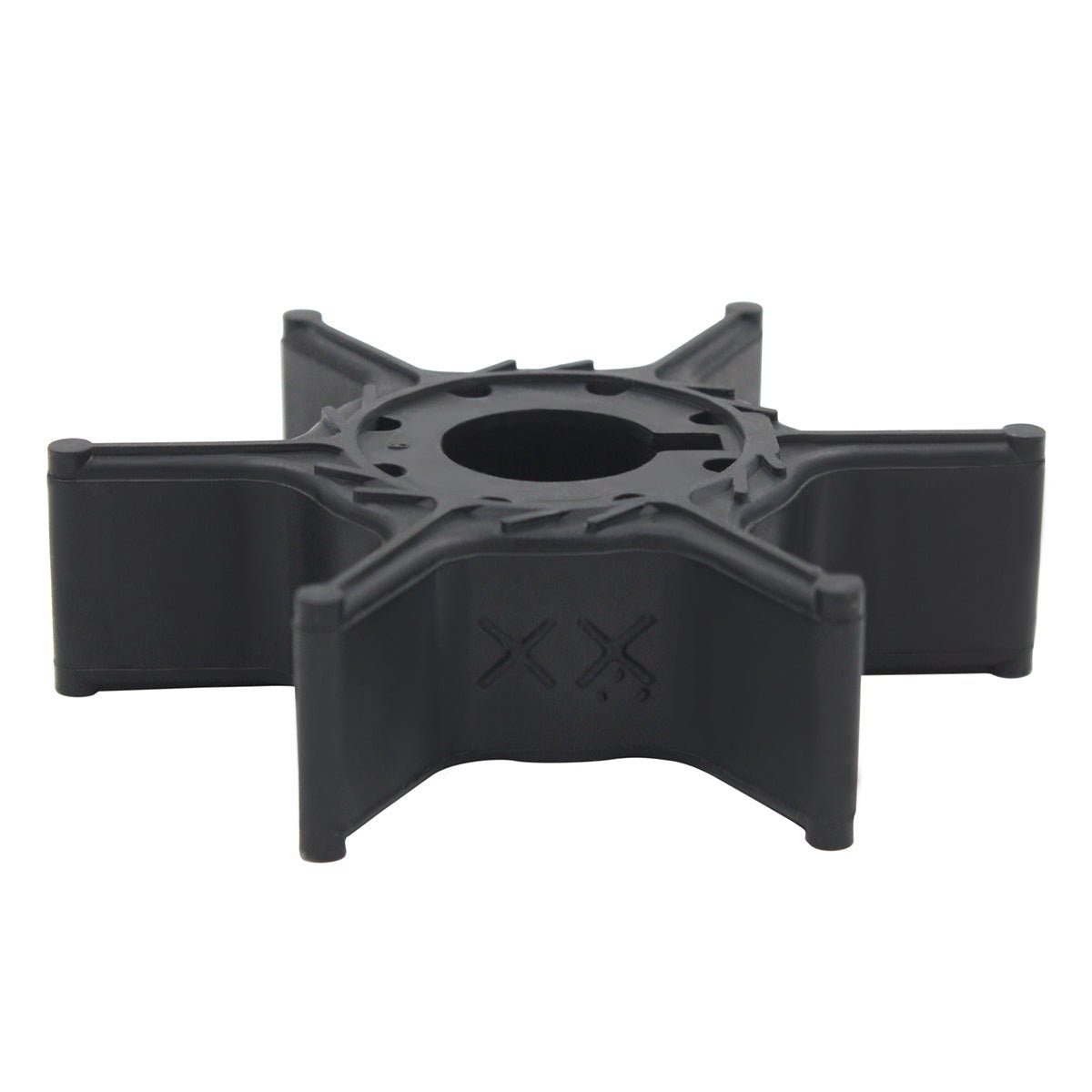

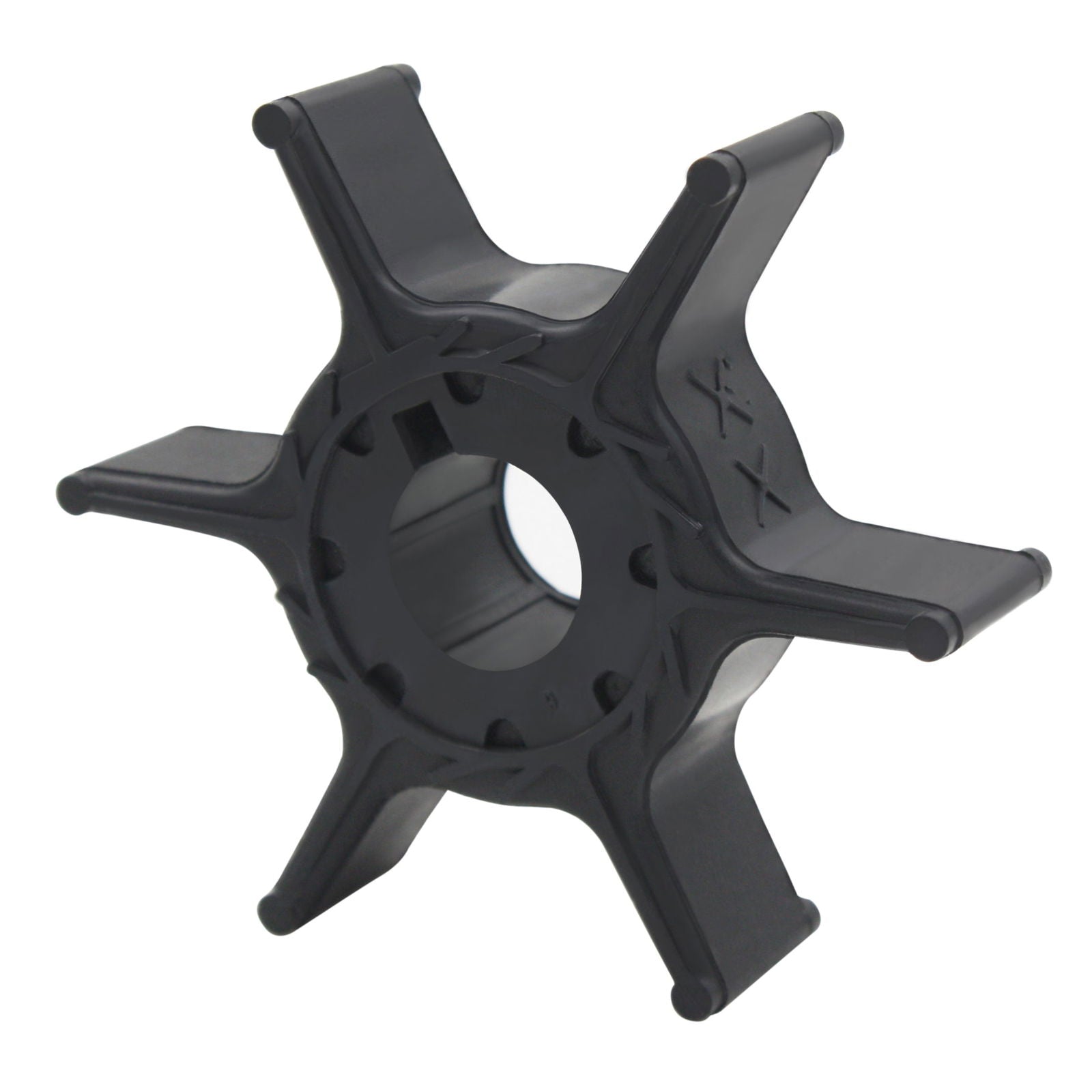

• 1 x Impeller (68T-44352-00-00)
• 1 x Woodruff Key (63V-44338-00-00 / 664-44338-00-00)
• 1 x O-Ring (93210-44398-00 / 93210-44704-00 / 93210-447-04-00)
• 1 x Cartridge Outer Plate (68T-44323-00-00)
• 4 x Bolts (97095-08045-00)

Installation Guide

1. Disconnect the spark plug wires and shift the outboard into neutral.
2. Place a drain pan under the lower unit and remove the gearcase drain and vent screws to drain the lubricant.
3. Remove the bolts connecting the lower unit (gearcase) to the engine's midsection.
4. Carefully lower and separate the gearcase from the drive shaft housing to expose the water pump assembly.
5. Unscrew the bolts securing the water pump housing cover and remove it.
6. Slide the old impeller off the drive shaft, noting the rotational direction of the vanes. Remove the old Woodruff key.
7. Remove the wear plate, gaskets, and seals, and clean all mating surfaces thoroughly.
8. Install the new components from the kit, starting with the plate, gaskets, and new Woodruff key.
9. Slide the new impeller onto the shaft while turning it in a clockwise direction to correctly orient the vanes.
10. Reinstall the housing, ensuring the O-ring is properly seated, and tighten the bolts to the specified torque.
11. Reassemble the lower unit to the engine, refill with gear lubricant, and test for proper water flow from the tell-tale outlet.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my Yamaha engine?

A: This kit is designed for Yamaha 4-stroke outboards from 6 to 9.9 HP, specifically models like the F6A, F8C, and F9.9J made between 2000 and 2019. Please review the "Compatible Engine Models" table on this page to match your exact model and year before purchasing.

Q: What are the signs my water pump impeller is failing?

A: Common symptoms include a weak or inconsistent stream of water from the tell-tale (water discharge) port, engine overheating alarms, or a noticeable drop in engine performance. A worn impeller cannot effectively pump cooling water.

Q: How often should I replace the water pump impeller?

A: For preventative maintenance, we recommend inspecting the impeller annually and replacing it every 1-2 years or every 100-200 hours of use. Frequency depends on operating conditions, especially in saltwater or sandy/silty environments.

Q: OEM vs. Aftermarket?

A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?

A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?

A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
