This water pump impeller repair kit provides the necessary components for servicing the water pump on select Yamaha and Mariner 2-stroke outboards. It is designed to fit Yamaha 25-30 HP models from 1984–1997 (including C25, CV25, C30, CV30) and specific Mariner 20-30 HP models (20C, 25C, 30A) with corresponding serial numbers.
This kit is a direct replacement for Yamaha part numbers 689-W0078-A6-00, 689-W0078-A4-00, and 689-W0078-04-00, as well as several aftermarket equivalents from Sierra Marine, GLM Marine, and Mariner.
Use this table to confirm equivalent part numbers across OEM and aftermarket brands.
Brand | Part Number |
---|---|
Yamaha | 689-W0078-A6-00 / 689-W0078-A4-00 / 689-W0078-04-00 |
Sierra Marine | 18-3426 / 18-3427 |
GLM Marine | 12059 / 12058 |
Mariner | 42431M / 84829M / 97793M / 97793T |
Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.
Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
---|---|---|---|---|---|---|
Yamaha | 25 HP | 25 | 2-Stroke | 1984-1985 | 689-W0078-A6-00 | |
Yamaha | 25 HP | 25 | 2-Stroke | 1986-1987 | 689-W0078-A6-00 | |
Yamaha | C25 | 25 | 2-Stroke | 1991-1997 | 689-W0078-A6-00 | |
Yamaha | CV25 | 25 | 2-Stroke | 1990 | 689-W0078-A6-00 | |
Yamaha | 30 HP | 30 | 2-Stroke | 1986 | 689-W0078-A6-00 | |
Yamaha | C30 | 30 | 2-Stroke | 1991-1992 | 689-W0078-A6-00 | |
Yamaha | CV30 | 30 | 2-Stroke | 1989-1990 | 689-W0078-A6-00 |
Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
---|---|---|---|---|---|---|
Mariner | 20C | 20 | 2-Stroke | All Years | 42431M | S/N prefix number 6A9 |
Mariner | 25C | 25 | 2-Stroke | All Years | 42431M | S/N prefix number 6A9 |
Mariner | 30A | 30 | 2-Stroke | All Years | 42431M | S/N prefix number 684 |
Specification | Value |
---|---|
Product Type | Water Pump Impeller Repair Kit |
Installation | Direct OEM Replacement |
Other Technical Attributes | Designed for durability with higher flow rates for optimal engine cooling |
A: This kit is designed for specific Yamaha 25-30 HP models (1984-1997) and Mariner 20-30 HP models requiring a 6A9 or 684 serial number prefix. Please carefully review the "Compatible Engine Models" table and cross-reference your engine's model, year, and serial number before purchasing to ensure a correct fit.
Q: What are the signs my water pump impeller needs replacement?A: The most common signs of a failing impeller are engine overheating alarms, a weak or inconsistent water stream from the tell-tale outlet, or a complete lack of water flow. Upon inspection, a worn impeller may have brittle, cracked, or broken vanes.
Q: How often should I replace the water pump impeller?A: As a crucial part of preventative maintenance, we recommend inspecting the impeller annually and replacing the entire water pump kit every 1-2 years or every 100-200 hours of operation. Replacement frequency may vary based on usage (saltwater vs. freshwater) and operating conditions.

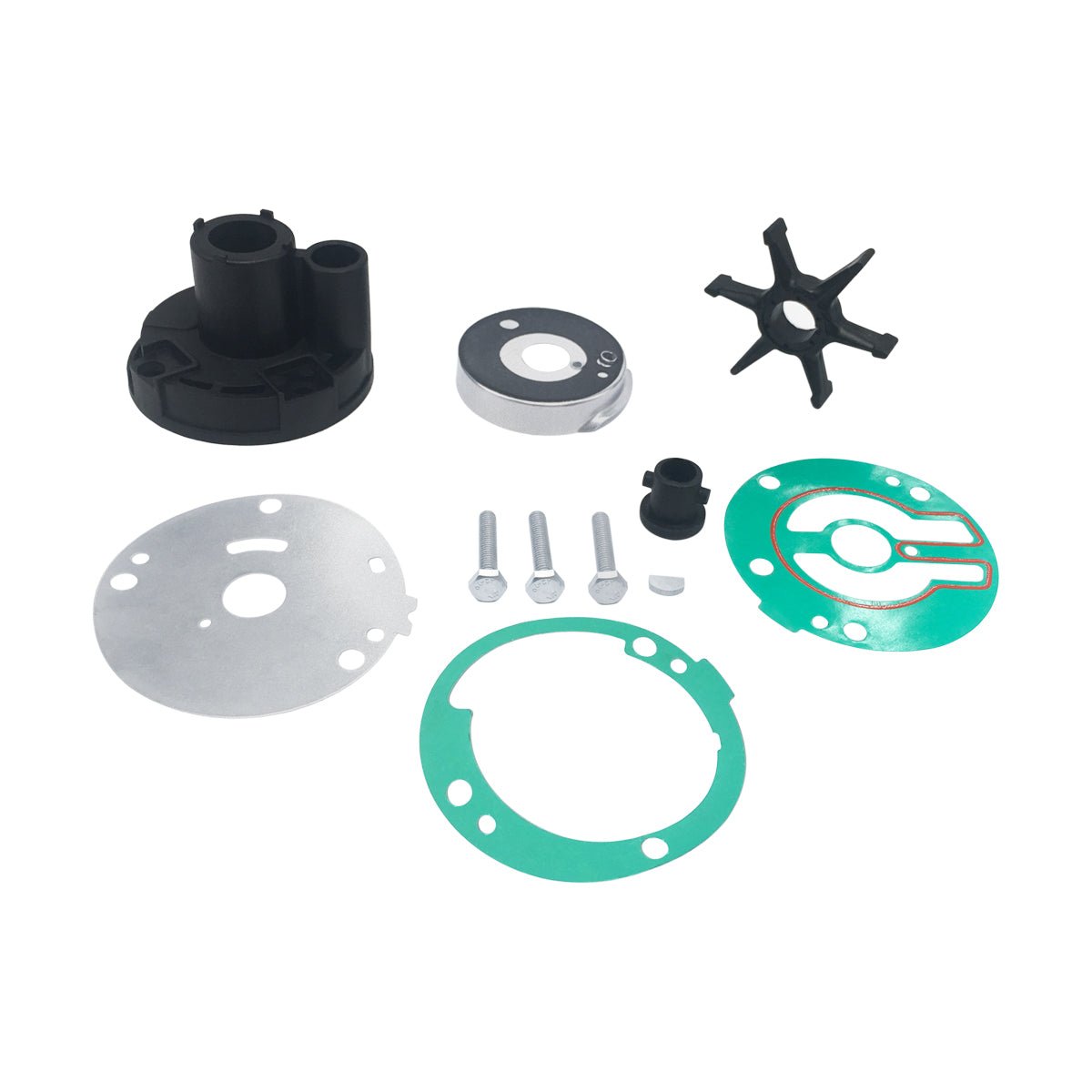

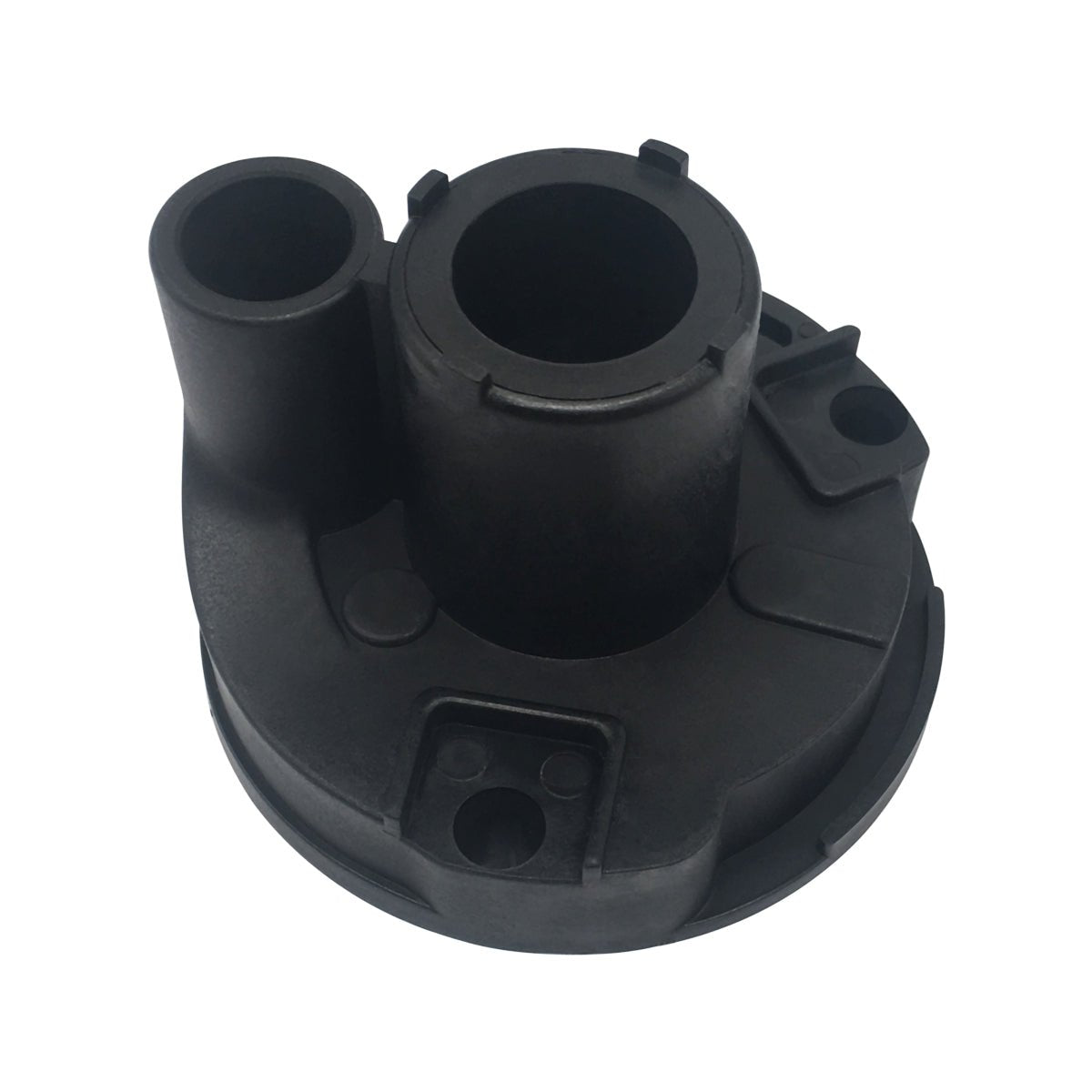

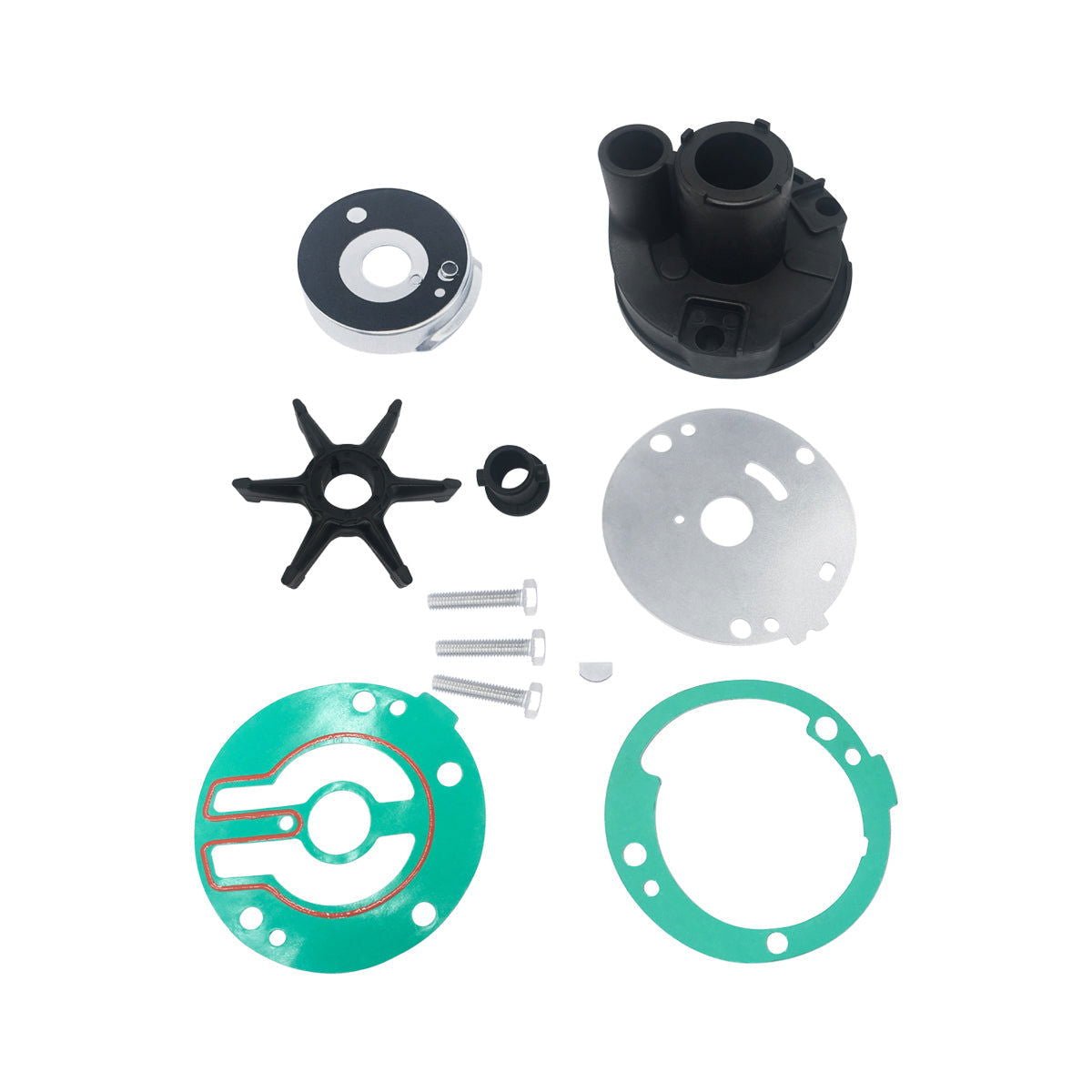

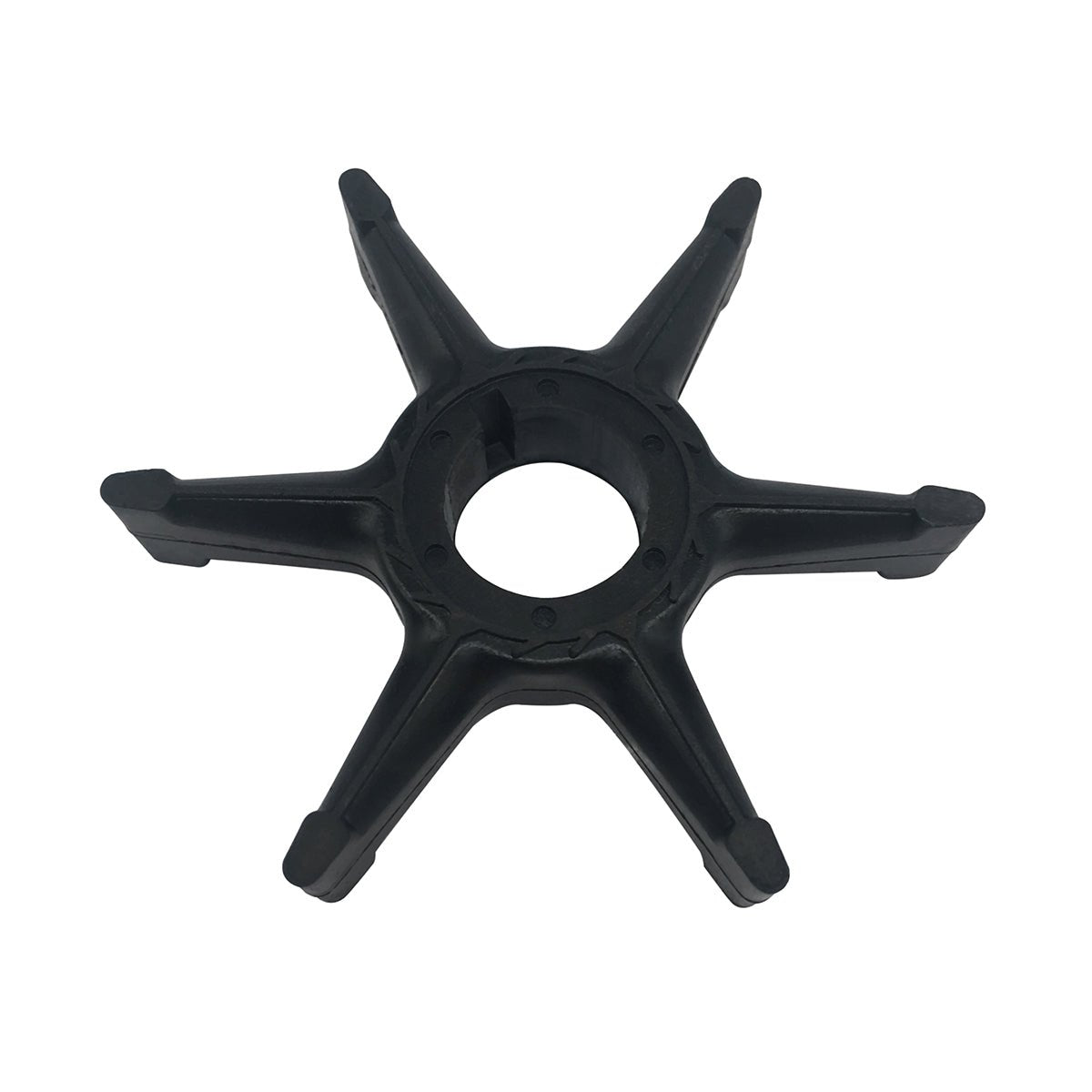

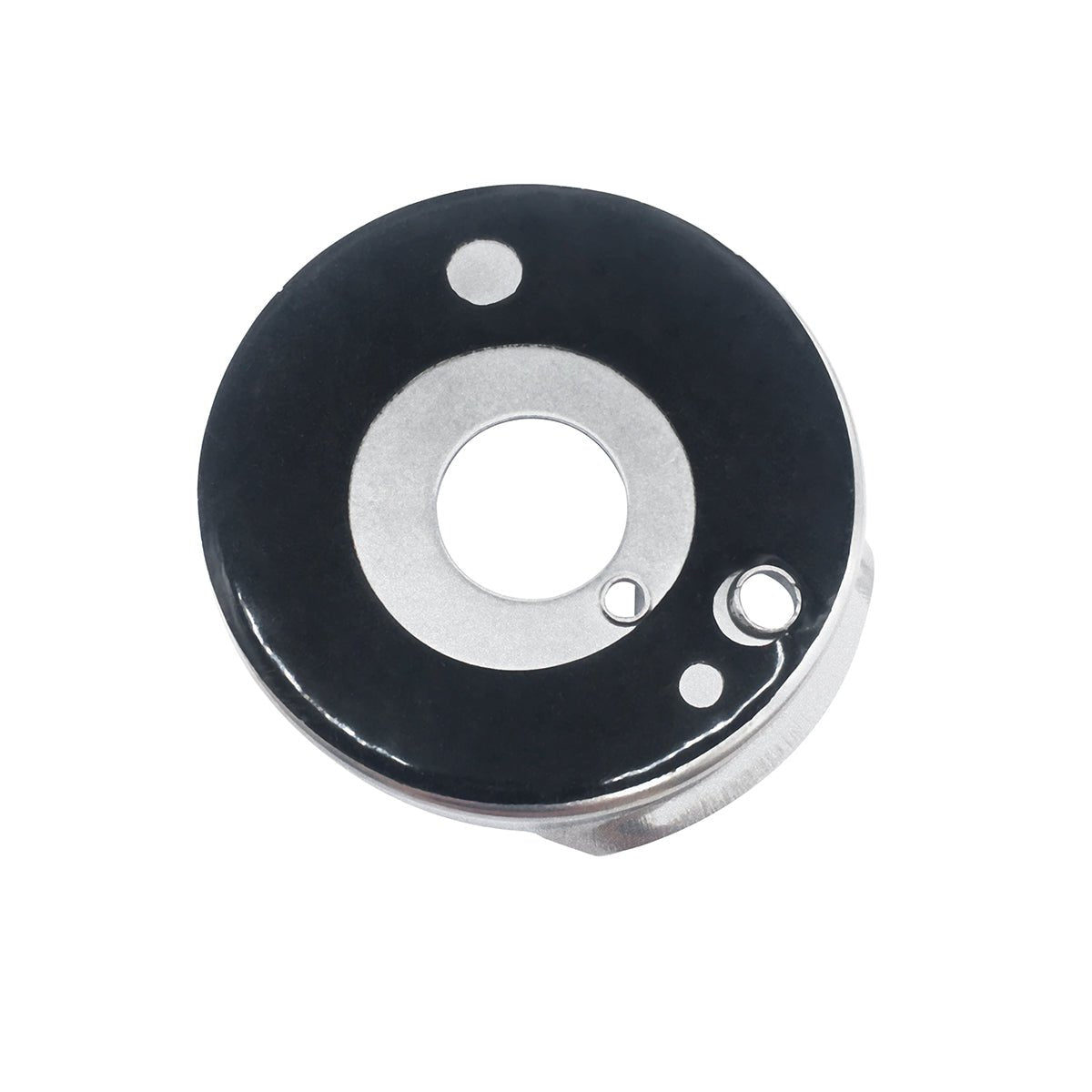

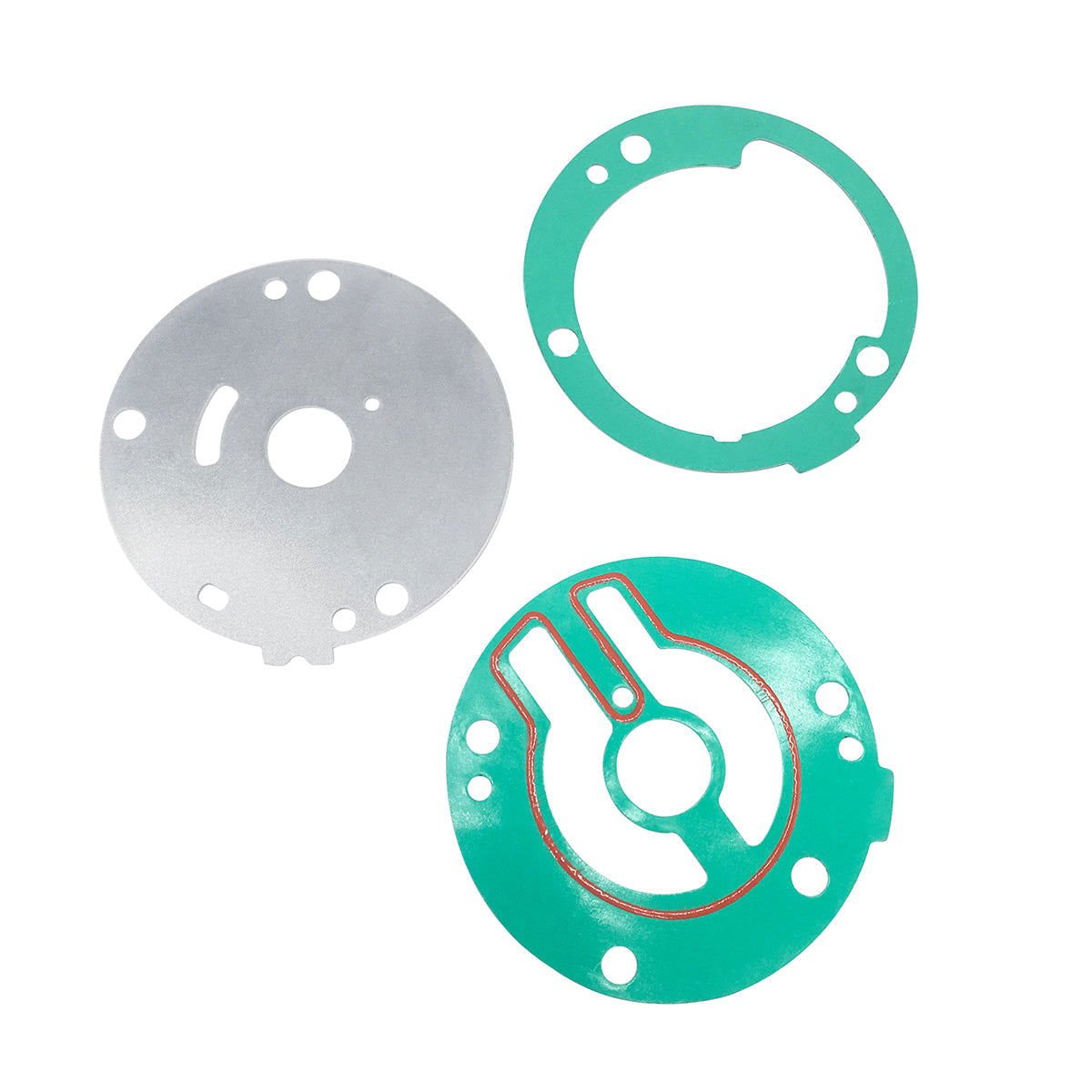

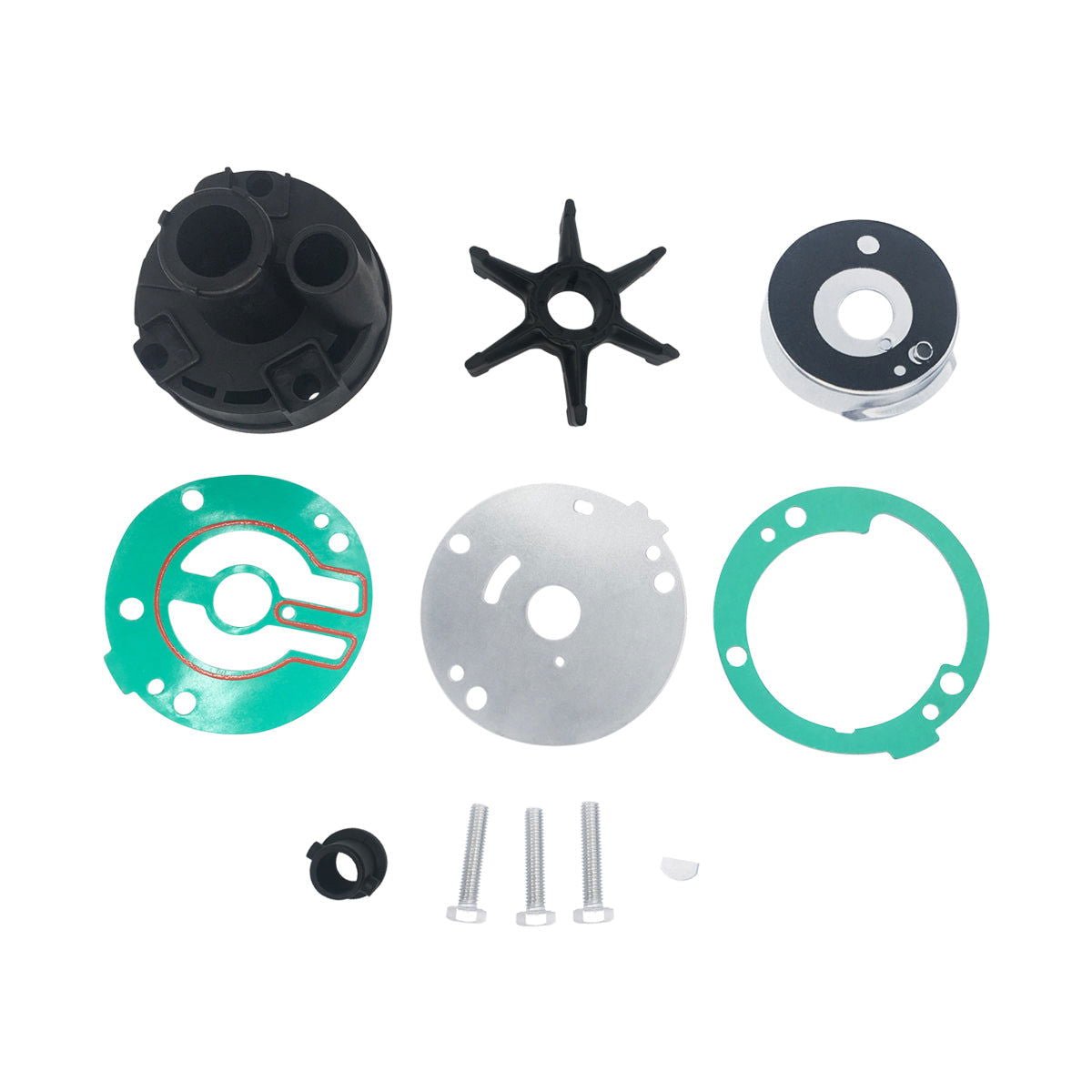

Q: Is this a complete kit with the housing included?A: Yes, this is a comprehensive repair kit. It includes the water pump housing, impeller, wear plate, insert cartridge, woodruff key, and all necessary gaskets, seals, and bolts as detailed in the "Package Contents" list.
Q: OEM vs. Aftermarket?A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.
Q: How fast do you ship and how much does it cost?A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.
Q: What is your warranty and return policy?A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.
