Water Pump Impeller Kit – Fits Mercury/Tohatsu 2.5 & 3.5 HP (Replaces 8M0181314)

Water Pump Impeller Kit – Fits Mercury/Tohatsu 2.5 & 3.5 HP (Replaces 8M0181314)

This water pump impeller kit is designed for Mercury/Mariner 2.5 & 3.5 HP 4-stroke outboard engines (serial number 0R131842 and higher) and Tohatsu 2.5 & 3.5 HP 4-stroke outboards. Tohatsu manufactures these engines for Mercury, ensuring identical component specifications.

This kit serves as a direct replacement for Mercury part numbers 8M0181314 and 47-161543, and Tohatsu part numbers 369-65021-1 and 309-65021-1.

• Engine Compatibility: 4-Stroke models only.
• Installation: Requires only standard tools for a direct replacement.
• Kit Contents: Includes impeller, gaskets, and impeller key for a complete service.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Mercury owners, here’s a guide to help you identify your engine’s serial/model: Mercury Serial Number Guide. You can also review exploded diagrams to verify part numbers: Mercury Parts Diagrams & Catalog.

Confirm your engine model/year in the table below.

Mercury/Mariner

Tohatsu

Technical Specifications

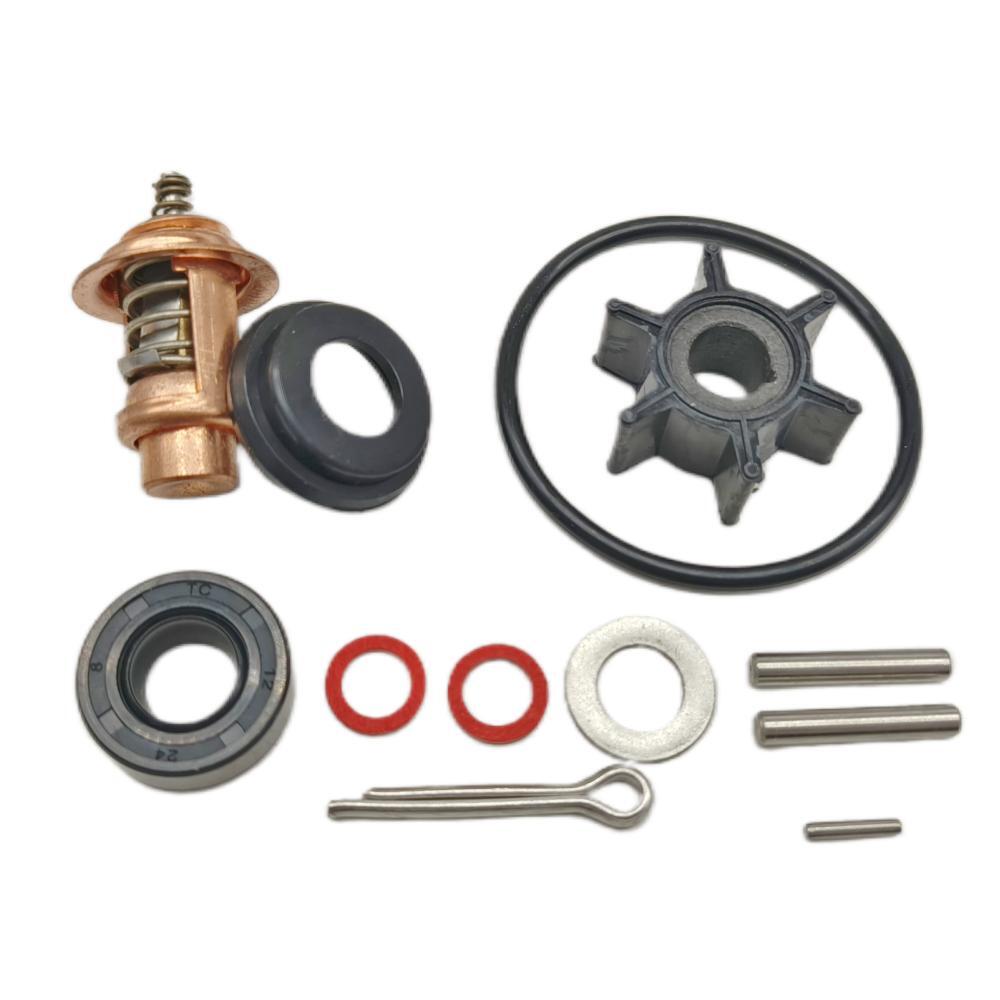

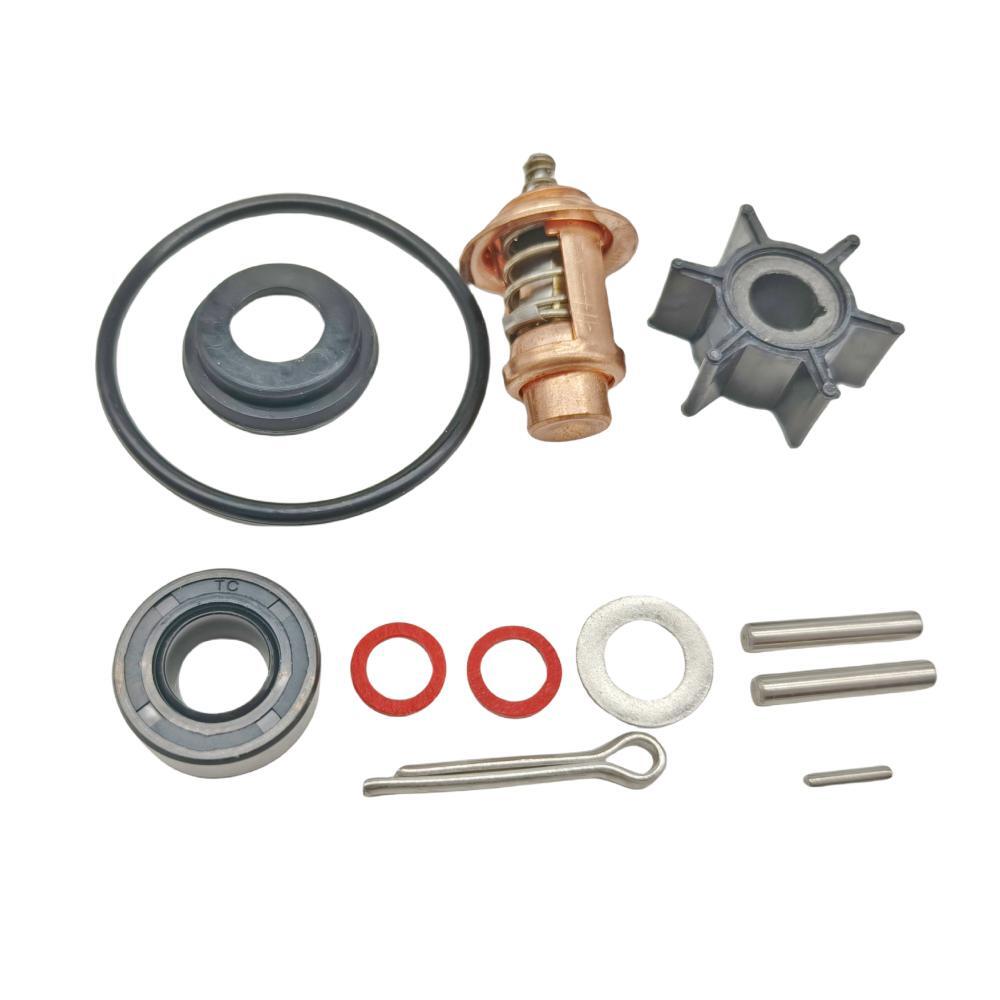

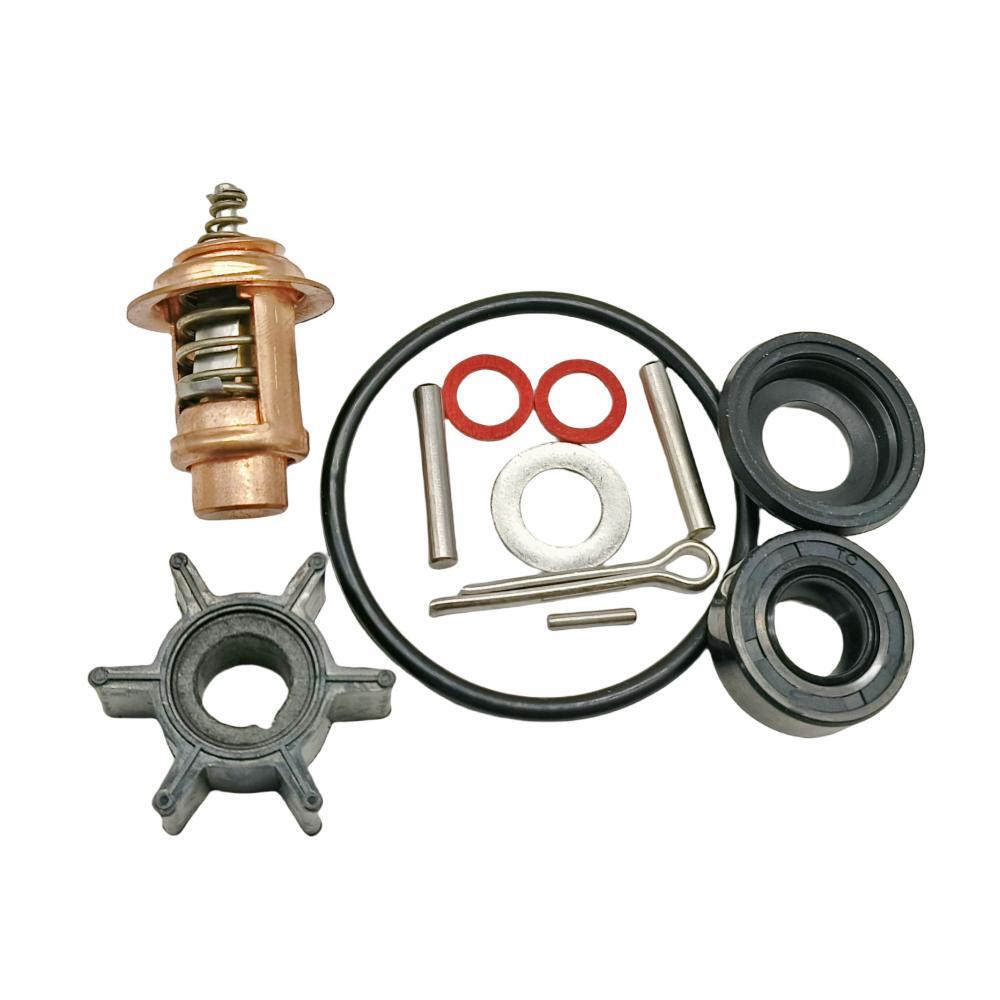

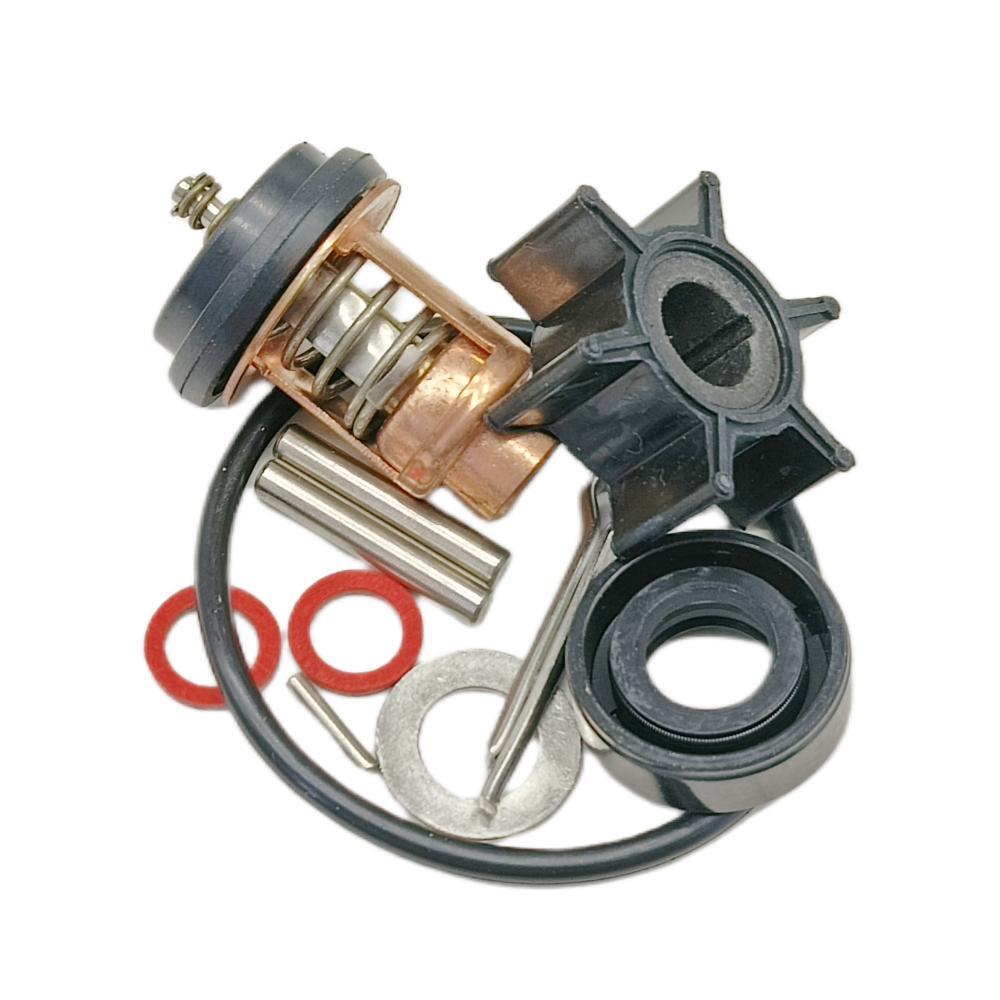

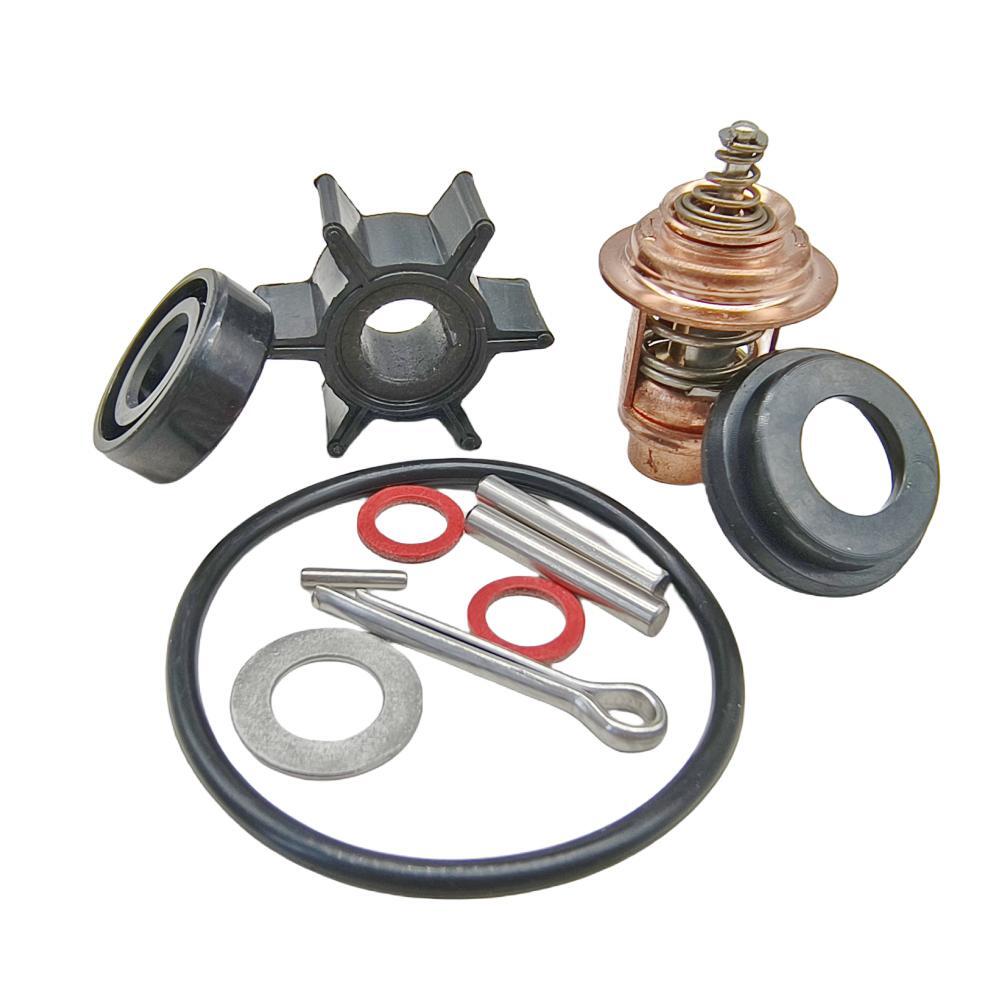

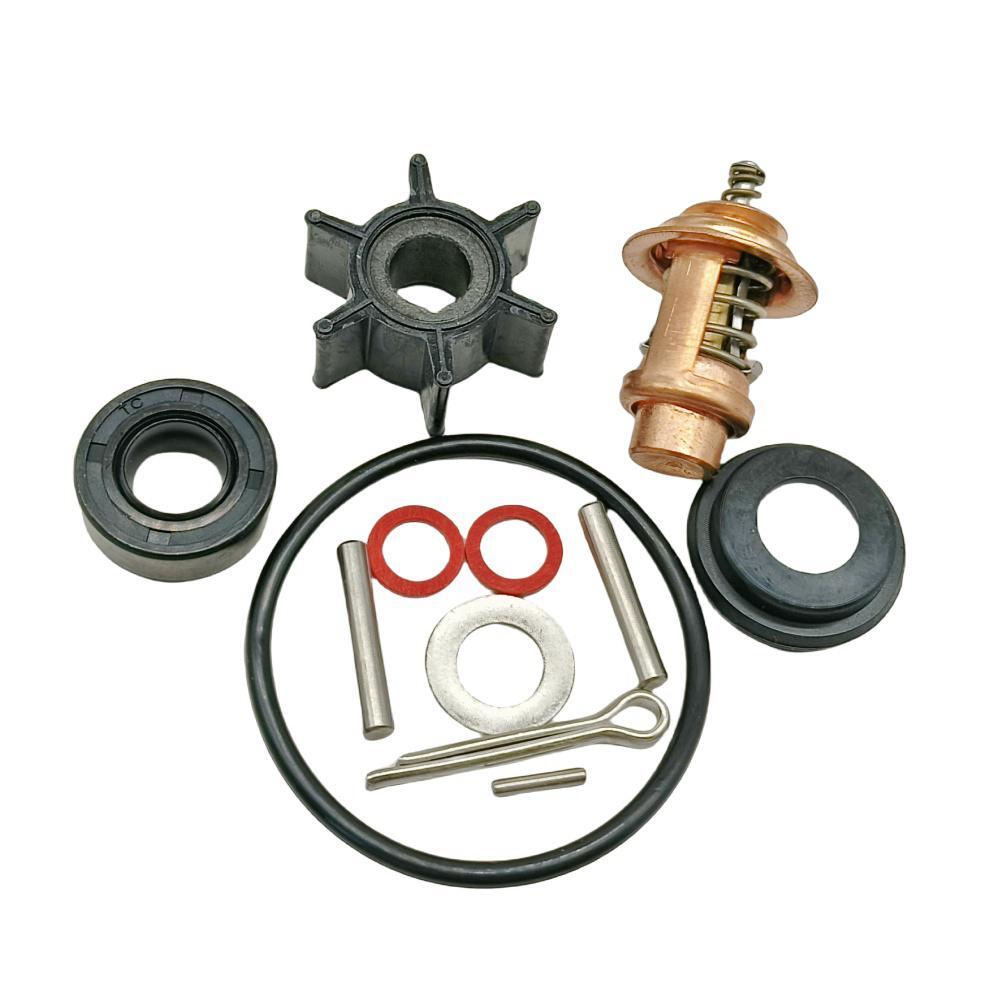

Package Contents

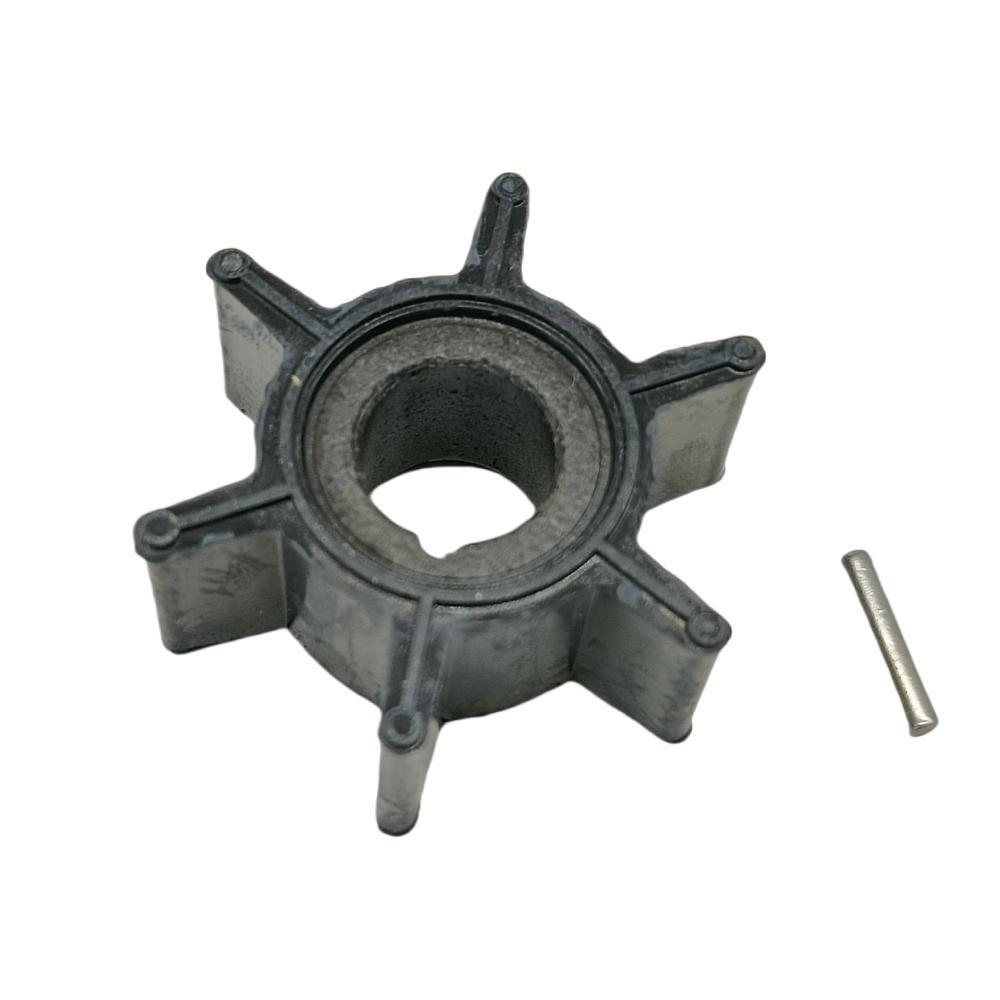

• 1 x Water Pump Impeller (369-65021-1 / 309-65021-1)
• 1 x Water Pump Gasket (3F0-65018-0)
• 1 x Water Pump Gasket (3F0-65029-0)
• 1 x Impeller Key (369-65022-0)
• 2 x Gearbox Drain/Fill Screw Fibre Washer (332-60006-0)

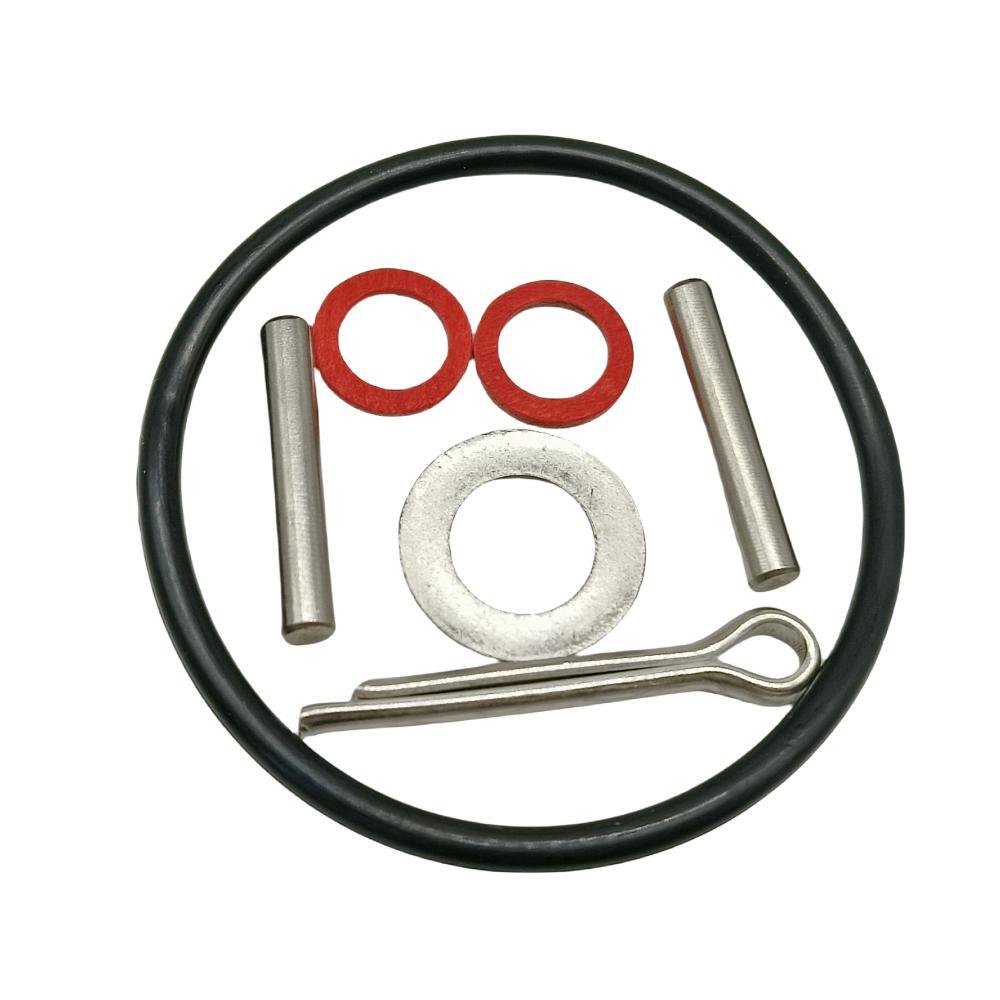

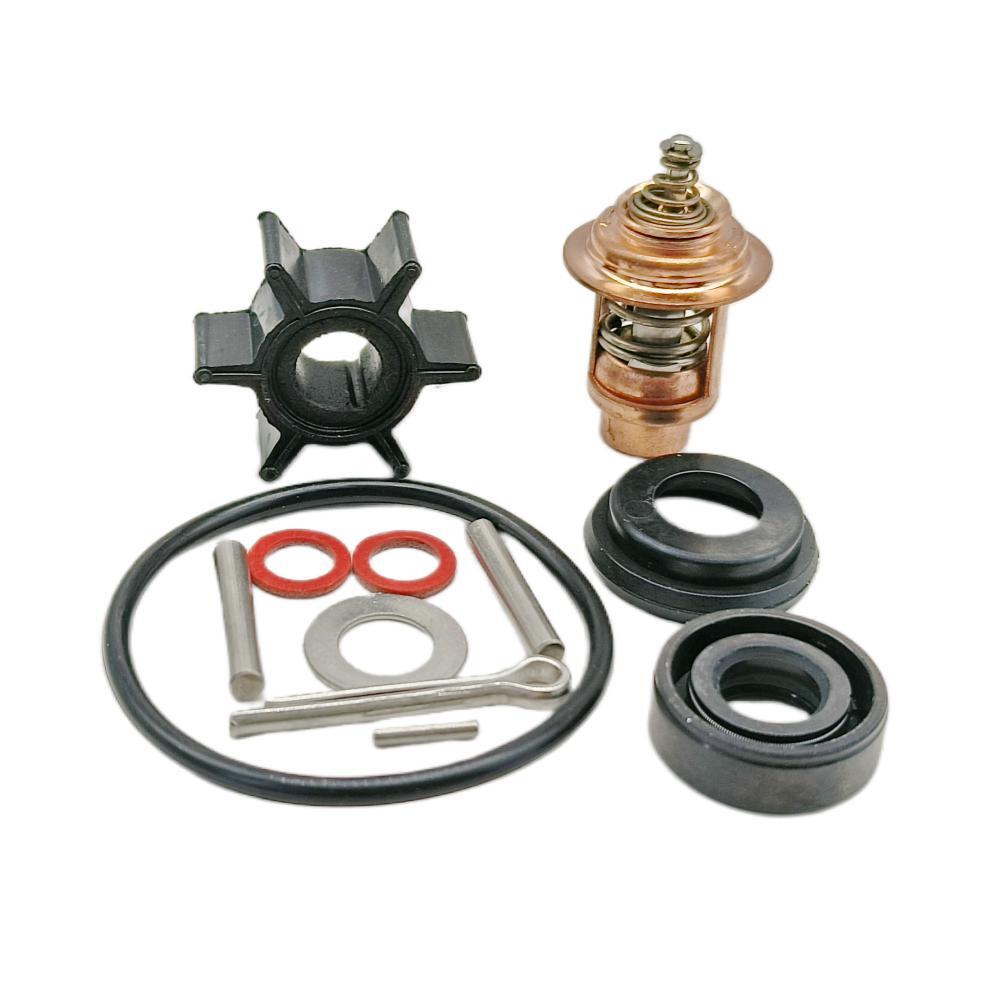

Note: Some kits may also include a shear pin, cotter pin, or additional seals according to Quicksilver specifications for their 8M0181314 service kit. The contents of this kit are as listed above.

Installation Guide

1. Safety First: Disconnect the engine's battery and shift the outboard into neutral.
2. Access the Lower Unit: Remove the bolts securing the lower unit (gearcase) to the engine leg and carefully lower it.
3. Disassemble Pump Housing: Locate the water pump housing on top of the gearcase. Unbolt and slide the housing up and off the driveshaft.
4. Remove Old Impeller: Take out the old impeller, gaskets, and wear plate. Note the direction of the old impeller blades for reference. Remove the small impeller key from the driveshaft.
5. Clean and Inspect: Thoroughly clean all mating surfaces and inspect the housing and wear plate for scoring or warping. Replace if damaged.
6. Install New Components: Place the new impeller key in its slot on the driveshaft. Slide the new impeller down while turning the driveshaft clockwise to bend the vanes correctly.
7. Reassemble: Install the new gaskets and reassemble the water pump housing, ensuring a proper seal.
8. Reinstall Lower Unit: Guide the lower unit back into place, aligning the driveshaft, and tighten the bolts to the manufacturer's torque specifications.

Troubleshooting & FAQ

Q: How do I confirm this kit fits my engine?
A: This kit is for Mercury/Mariner 2.5 & 3.5 HP 4-stroke engines with serial number 0R131842 or higher, and Tohatsu MFS2.5 & MFS3.5 4-stroke models from 2006 onwards. Please verify your engine details against the compatibility tables above.

Q: Will this fit my 2-stroke Tohatsu or Mercury engine?
A: No. This kit is specifically designed for the 4-stroke models listed. It is not compatible with 2-stroke engines, which use a different water pump design.

Q: What are the signs that my impeller needs replacing?
A: Common signs of a failing impeller include a weak or non-existent water stream from the tell-tale port, engine overheating alarms, or visible cracks and brittleness on the old impeller's rubber vanes during inspection.

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
