Water Pump Impeller – Fits Yamaha 225HP/250HP/300HP 4-Stroke Outboards (Replaces 6CE-44352-00/6CE-44352-01)

Water Pump Impeller – Fits Yamaha 225HP/250HP/300HP 4-Stroke Outboards (Replaces 6CE-44352-00/6CE-44352-01)

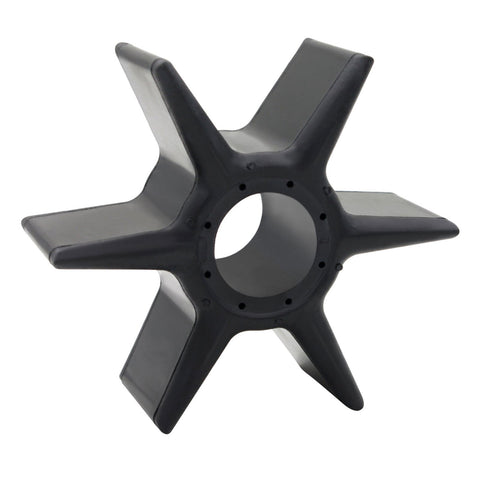

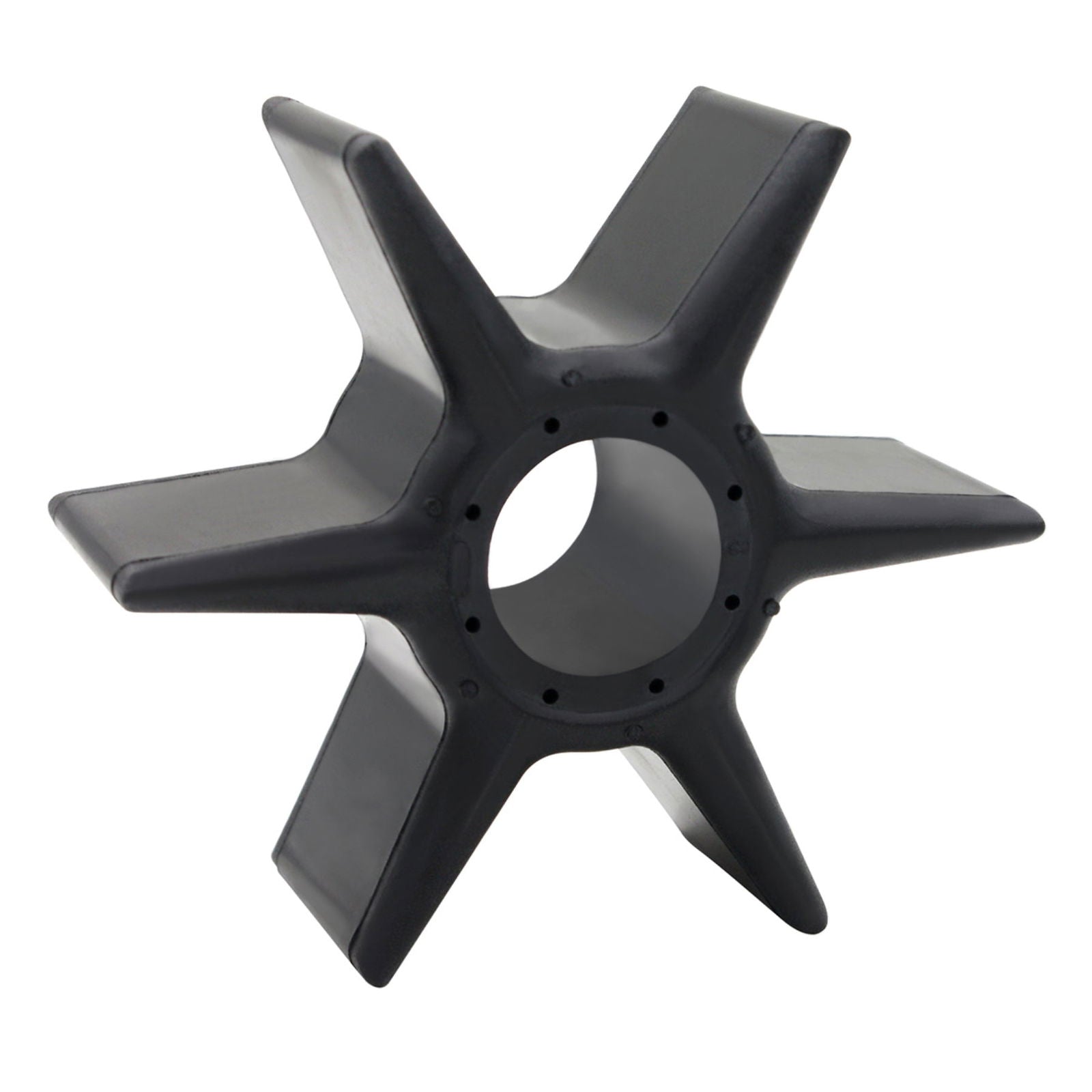

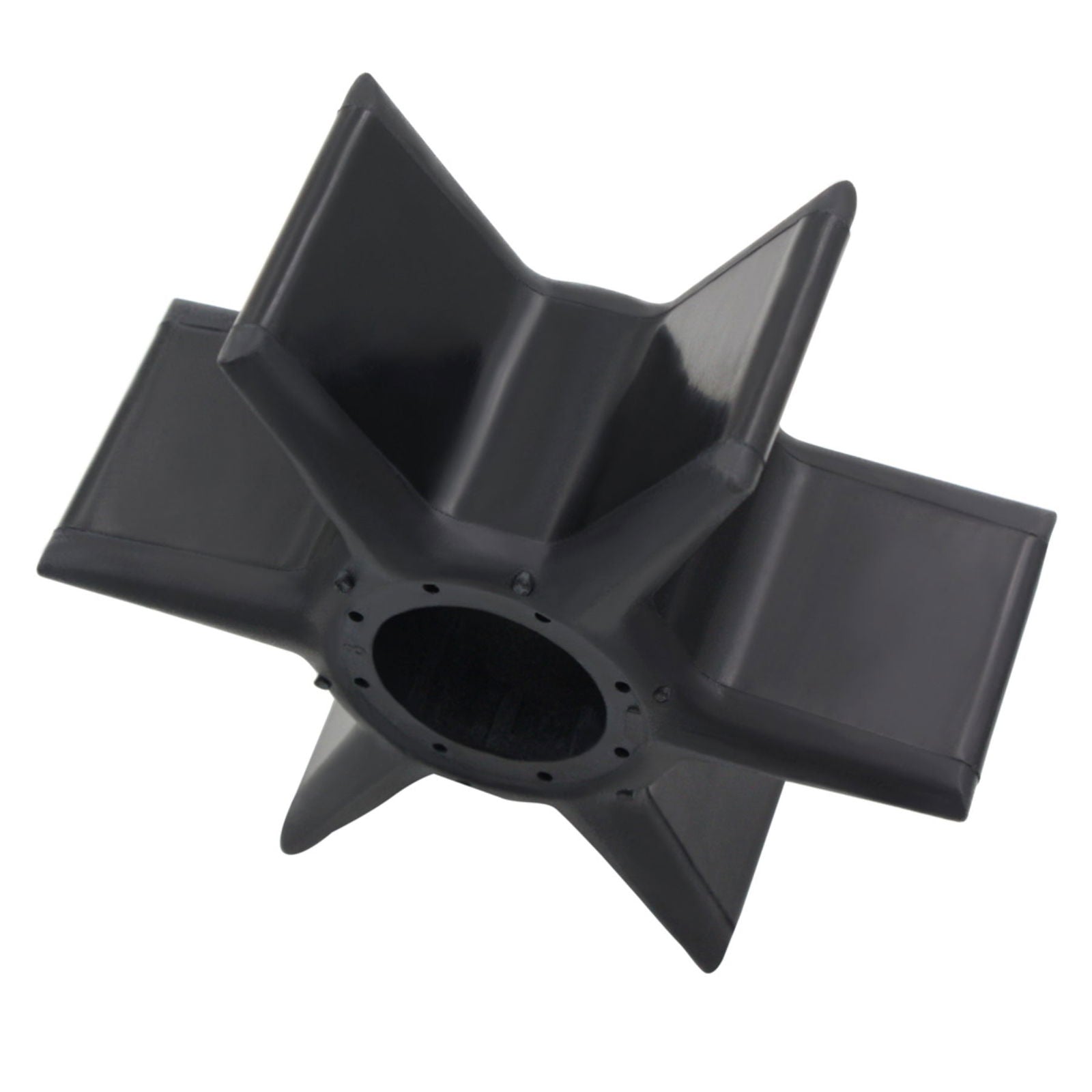

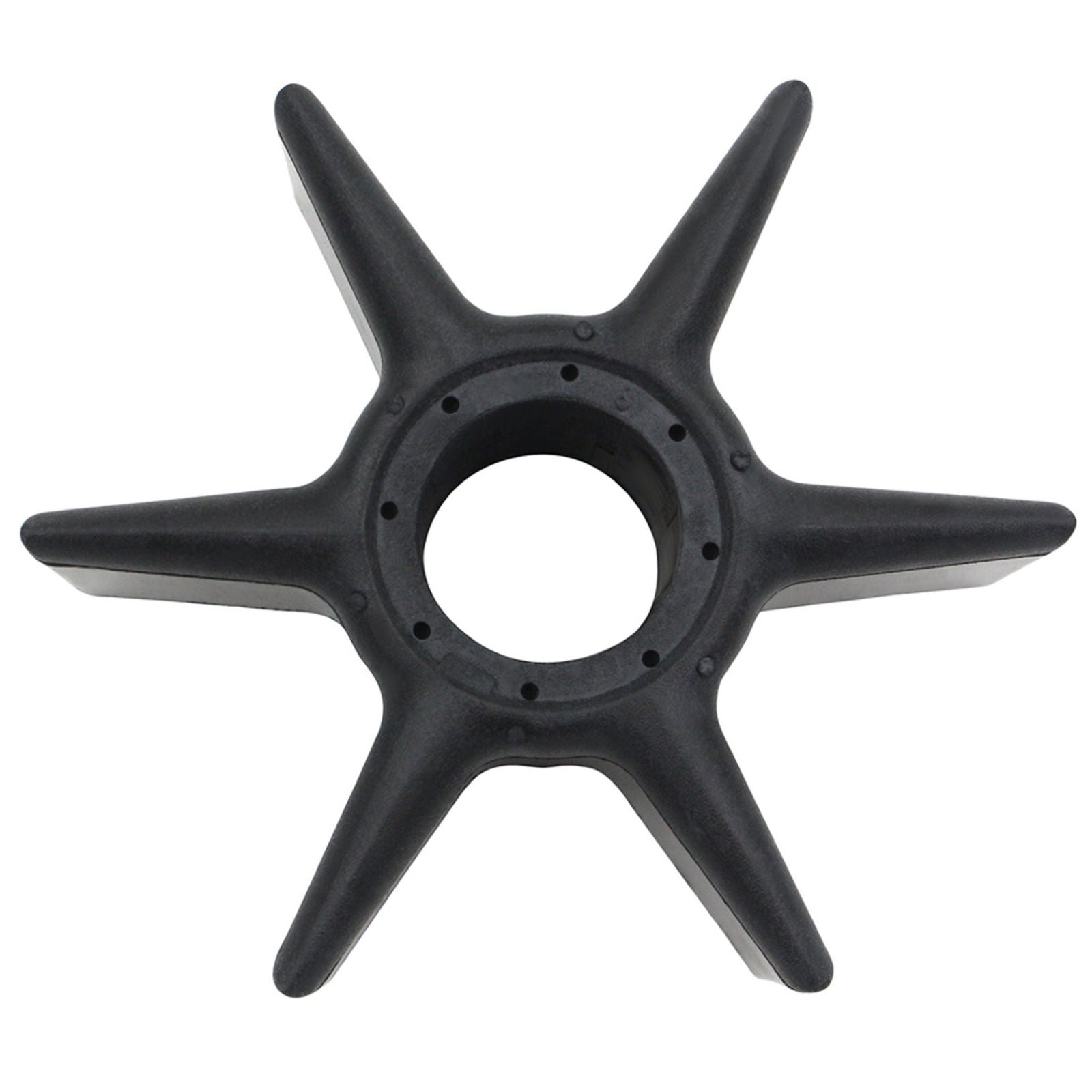

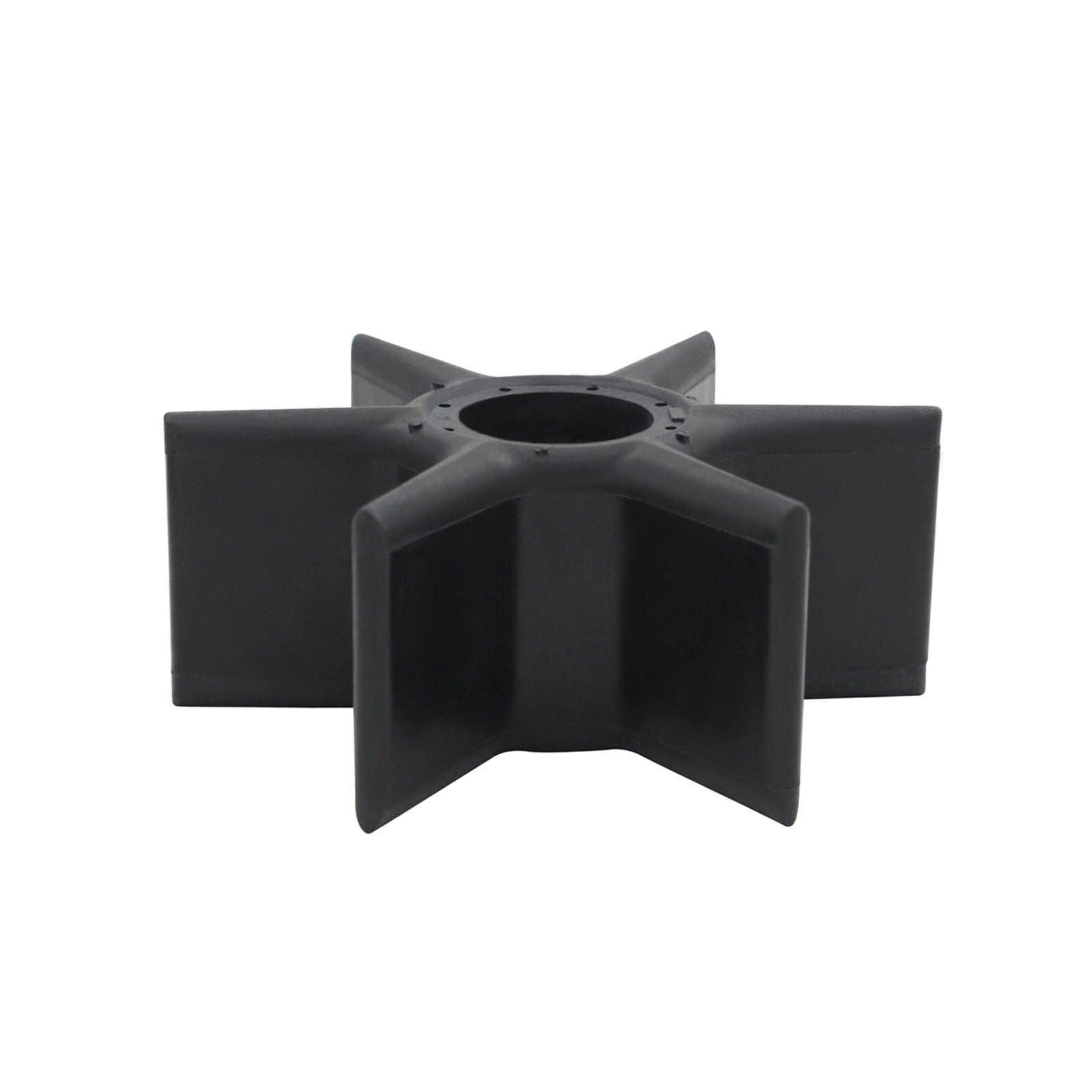

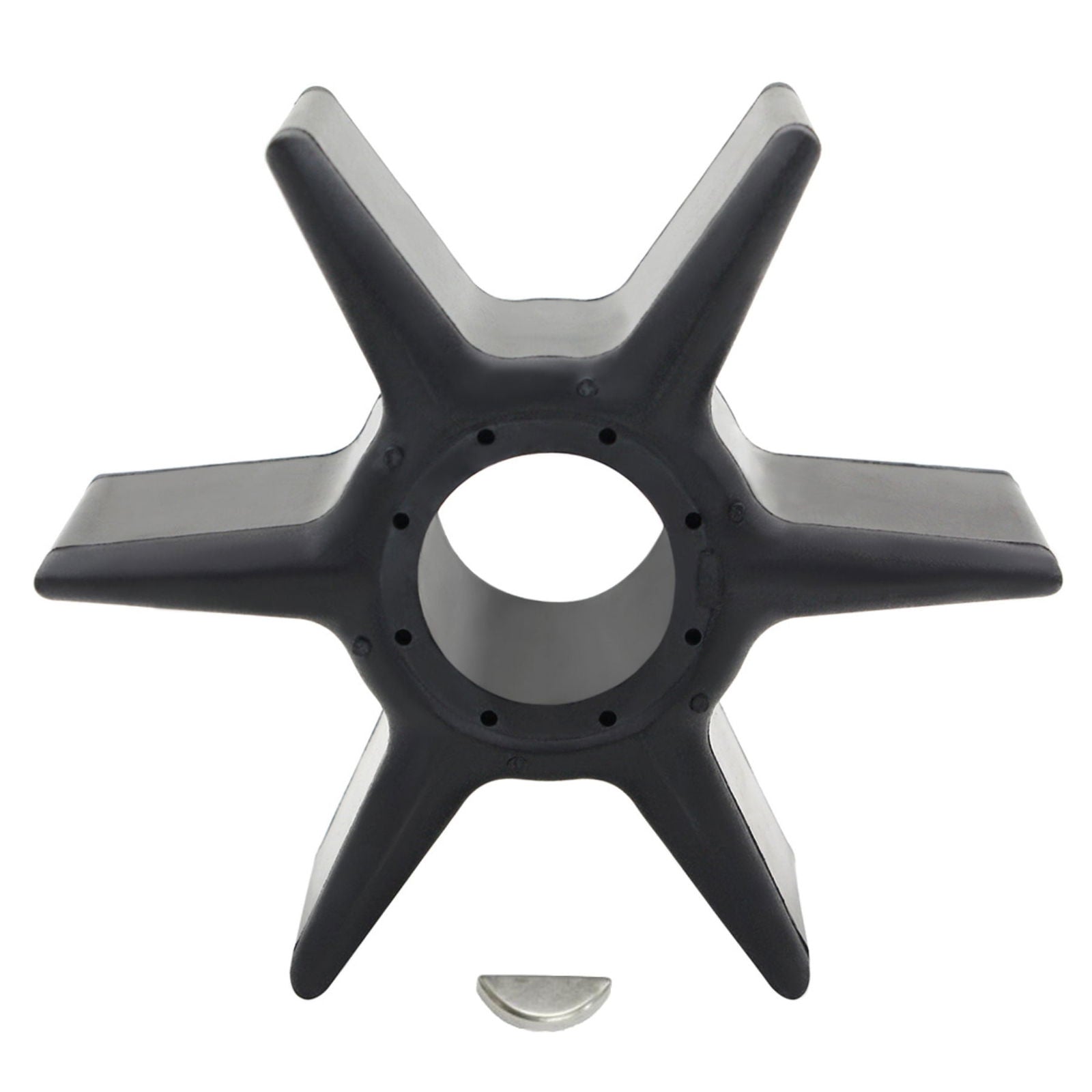

This aftermarket water pump impeller is engineered to fit Yamaha F225, F250, and F300 4.2L V6 4-Stroke outboard motors (2006 and later models).

It serves as a direct replacement for multiple OEM and aftermarket part numbers, ensuring broad compatibility for routine maintenance or repair.

• Installs directly into the original OEM water pump housing.
• Constructed from a durable, marine-grade neoprene compound for reliable performance.
• The design requires clockwise rotation for proper operation.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here’s a guide to help you identify your engine’s serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• 1 x Water Pump Impeller (6CE-44352-00/6CE-44352-01/6CE-44352-03)

Explosion Diagram

Installation Guide

1. Disconnect the negative battery cable and shift the outboard into the neutral position.
2. Locate and remove the bolts securing the lower unit (gearcase) to the upper driveshaft housing.
3. Carefully lower and separate the lower unit from the engine.
4. Unscrew the bolts on the water pump housing cover and remove the cover.
5. Slide the old impeller up and off the driveshaft. Note the direction of the vanes for reinstallation.
6. Clean any dirt or corrosion from the pump housing interior and the driveshaft.
7. Lightly grease the interior of the pump housing and slide the new impeller onto the driveshaft.
8. Install the new impeller with a slight turning motion in the clockwise direction to orient the blades correctly.
9. Reinstall the water pump housing cover and tighten its bolts to the manufacturer's specified torque.
10. Guide the lower unit back into position, ensuring the driveshaft, shift shaft, and water tube align correctly.
11. Securely fasten the lower unit bolts and reconnect the battery cable. Start the engine using a water supply to verify water flows from the tell-tale port.

Troubleshooting & FAQ

How can I confirm this impeller fits my Yamaha engine?
This impeller is designed for Yamaha F225, F250, and F300 4.2L V6 4-Stroke models from 2006 and newer. Please check the "Compatible Engine Models" table to verify your specific model and year. You can also match your old part's number to the ones listed in our "Part Number Cross-Reference" section for confirmation.

What are the signs of a failing water pump impeller?
Common signs of a worn or damaged impeller include your engine overheating, especially at idle or low speeds, a weak or intermittent water stream from the tell-tale outlet, or a complete stop of water flow from the outlet.

How often should I replace the impeller?
For preventative maintenance, it is recommended to inspect your impeller annually and replace it every 1-2 years or every 100-200 hours of engine use. Factors like operating in sandy or silty water may require more frequent replacement.

OEM vs. Aftermarket?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
