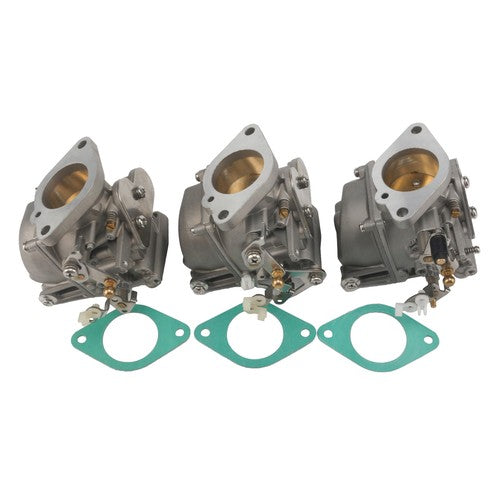

Carburetor Set for Yamaha 85HP 2-Stroke Outboard Motors

This carburetor set is engineered for Yamaha 3-cylinder 85HP 2-stroke outboard engines. It includes three complete carburetors with gaskets, providing a comprehensive fuel delivery solution for top, middle, and bottom positions on your powerhead.

Directly replaces OEM part numbers 688-14301-40, 688-14302-40, and 688-14303-40, along with their alternates 692-14301-36, 692-14302-36, and 692-14303-36. Also compatible with 688-14301-08 (top), 688-14302-08 (middle), and 688-14303-08 (bottom).

• Complete set of three carburetors with mounting gaskets
• Precision-engineered for consistent fuel metering across all cylinders
• Direct bolt-on replacement for Yamaha 3-cylinder 85HP 2-stroke engines

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket options.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

• Carburetor with gasket (Part #3522) × 3 pieces
• Top carburetor (replaces 688-14301-40 / 692-14301-36)
• Middle carburetor (replaces 688-14302-40 / 692-14302-36)
• Bottom carburetor (replaces 688-14303-40 / 692-14303-36)

Installation Guide

1. Disconnect the battery and remove the engine cowling to access the carburetor assembly. Ensure the fuel line is shut off to prevent spillage.
2. Label and disconnect all fuel lines, linkage rods, and electrical connections from each carburetor. Take photos for reference during reassembly.
3. Remove the mounting bolts securing each carburetor to the intake manifold. Carefully extract the old carburetors from top, middle, and bottom positions.
4. Clean the intake manifold surfaces thoroughly, removing all old gasket material and debris. Inspect for cracks or warping.
5. Install new gaskets onto the intake ports, ensuring proper alignment with bolt holes. Do not reuse old gaskets.
6. Position the top carburetor (688-14301-40 replacement) onto the upper intake port. Hand-tighten mounting bolts first.
7. Install the middle carburetor (688-14302-40 replacement) onto the center intake port using the same method.
8. Mount the bottom carburetor (688-14303-40 replacement) onto the lower intake port. Ensure all three units are properly seated.
9. Torque all mounting bolts to manufacturer specifications in a criss-cross pattern to ensure even gasket compression.
10. Reconnect fuel lines, linkage rods, and electrical connections to all three carburetors, referring to your reference photos.
11. Turn on the fuel supply and inspect for leaks at all connection points. Address any leaks before proceeding.
12. Reinstall the engine cowling, reconnect the battery, and perform a test start. Adjust idle and synchronization as needed per service manual.

Troubleshooting & FAQ

Q: How do I confirm this carburetor set fits my Yamaha engine?
A: Verify that your engine is a Yamaha 3-cylinder 85HP 2-stroke model. Cross-reference your existing carburetor part numbers with those listed in our Part Number Cross-Reference table (688-14301/02/03 series). If your current carburetors match any of the OEM numbers listed, this set will fit.

Q: What are the differences between this aftermarket set and OEM Yamaha carburetors?
A: This aftermarket set is manufactured to OEM specifications using comparable materials and quality standards. While not produced by Yamaha, it provides equivalent performance and fitment at a more competitive price point. All units are inspected for quality before shipment.

Q: How often should I replace or rebuild my carburetors?
A: Carburetor lifespan depends on fuel quality, usage, and maintenance. If you experience hard starting, rough idle, poor acceleration, or uneven cylinder performance, replacement or rebuild may be needed. Regular cleaning and using fresh fuel with stabilizer can extend carburetor life significantly.

Q: Do I need to synchronize the three carburetors after installation?
A: Yes, proper synchronization is critical for smooth engine operation and balanced cylinder performance. After installation, use a carburetor synchronization tool or vacuum gauges to ensure all three carburetors are delivering equal fuel/air mixture. Consult your Yamaha service manual for the correct procedure.

Q: What are common signs that my carburetors are failing?
A: Symptoms include difficult starting (especially when cold), rough or inconsistent idle, hesitation during acceleration, black smoke from exhaust, excessive fuel consumption, or one cylinder running cooler than others. Carburetor issues often stem from clogged jets, worn gaskets, or varnish buildup from old fuel.

Q: Is this an OEM product or aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.

Why Choose JLM MARINE?

• Quality Assured: As a trusted manufacturer for over 20 years, we supply top marine brands globally.
• Fast Global Shipping: Free delivery worldwide in 5–15 days.
• Direct from Manufacturer: Competitive pricing without compromising quality.
