06211-ZZ5-505 Maintenance Kit for Honda BF40D / BF50D

This aftermarket maintenance kit is designed as a replacement for Honda outboard engines in the BF40D and BF50D series. The kit consolidates the most commonly serviced components—cooling, lubrication, fuel, and drive systems—into a single package, simplifying scheduled maintenance intervals.

It is engineered to replace OEM reference 06211-ZZ5-505 and includes all critical service items needed for a comprehensive tune-up on compatible Honda 4-stroke outboards. All components are manufactured to OEM-equivalent specifications.

• Includes 12 distinct components covering cooling, fuel, oil, and drivetrain service needs.
• Compatible with Honda BF40D and BF50D outboard engines.
• Aftermarket replacement — not an OEM part; built to OEM-equivalent specifications.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket references.

Compatible Engine Models

Confirm your engine model/year in the table below.

Technical Specifications

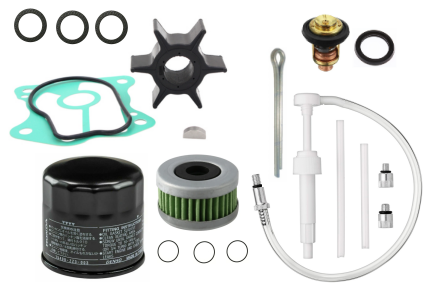

Package Contents

The following items are included in this maintenance kit:

• 19233-ZV5-000 — Gasket × 1
• 90752-ZV5-000 — Key × 1
• 91356-ZV5-000 — O-ring × 1
• 19210-ZV5-003 — Impeller × 1
• 19300-ZV5-043 — Thermostat × 1
• 15400-PFB-014 — Oil Filter × 1
• 16911-ZZ5-003 — Fuel Filter × 1
• 16073-ZZ5-003 — O-ring × 1
• 12-191833 — Drain Gasket × 3
• 91301-ZW4-003 — O-ring × 3
• 90758-ZV5-000 — Cotter Pin × 1
• 24OP149 — Gear Oil Pump × 1

Installation Guide

1. Prepare the engine: Flush the engine with fresh water after its last use and allow it to cool completely before beginning any service work.
2. Gather tools: Collect all necessary tools (socket set, torque wrench, pliers, drain pan) and lay out all kit components before starting.
3. Drain engine oil: Remove the drain plug and drain the old engine oil into a suitable container. Replace the Drain Gasket (12-191833) before reinstalling the drain plug.
4. Replace the oil filter: Remove the old oil filter and install the new Oil Filter (15400-PFB-014), applying a thin film of clean oil to the gasket before threading it on.
5. Replace the fuel filter: Disconnect the fuel line, remove the old fuel filter, and install the new Fuel Filter (16911-ZZ5-003) along with the new O-ring (16073-ZZ5-003).
6. Service the water pump (impeller): Remove the lower unit, disassemble the water pump housing, and replace the Impeller (19210-ZV5-003) and Gasket (19233-ZV5-000). Inspect and replace the Key (90752-ZV5-000) if worn.
7. Replace the thermostat: Remove the thermostat housing, discard the old thermostat, and install the new Thermostat (19300-ZV5-043) with the appropriate O-ring.
8. Install O-rings: Replace all O-rings (91356-ZV5-000, 91301-ZW4-003) at their respective locations, ensuring seating surfaces are clean and undamaged.
9. Service the gear oil pump: Remove the old gear oil pump and install the new Gear Oil Pump (24OP149), taking care to align it correctly per the service manual.
10. Replace the cotter pin: Install the new Cotter Pin (90758-ZV5-000) to secure the propeller nut; never reuse an old cotter pin.
11. Reassemble and refill: Reassemble the lower unit, refill with the specified grade of engine oil and gear oil to the correct levels, and reinstall the drain plug with the new drain gasket.
12. Test run: Start the engine and run it at idle for several minutes. Check for leaks at all service points—fuel, oil, and cooling—and verify water pump output before returning the engine to service.

Troubleshooting & FAQ

How do I confirm this kit fits my Honda outboard?
This kit is designed for the Honda BF40D and BF50D series. Verify your engine's model designation on the engine label and cross-reference the OEM part number 06211-ZZ5-505 with your service manual before ordering.

How often should I replace the impeller and other kit components?
Honda generally recommends replacing the water pump impeller every 100 hours or annually, whichever comes first. Oil and fuel filters should be replaced at each seasonal service or per your engine's maintenance schedule.

What are the signs that the impeller needs replacement?
Warning signs include reduced or no water flow from the tell-tale (pee hole), engine overheating, or visible wear/cracking on the impeller vanes. Do not run the engine if the cooling water output appears weak.

Can I use this kit if my engine shows a different sub-variant of BF40 or BF50?
This kit is specifically validated for the BF40D and BF50D variants. If your engine is a different sub-variant (e.g., BF40A, BF50A), verify the OEM part number against your engine's parts diagram before purchasing.

Is this an OEM part or an aftermarket replacement?
This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
