8M0222223 Service Kit for Yamaha VF115 SHO

This comprehensive service kit is specifically designed for the Yamaha VF115 SHO outboard engine. It provides all the essential maintenance components needed for routine servicing, ensuring your engine operates at peak performance and reliability.

This kit directly replaces OEM part number 8M0222223, delivering a complete solution for your scheduled maintenance needs without the need to source individual components separately.

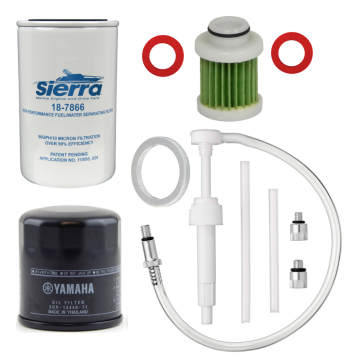

• Includes oil filter, remote fuel filter, fuel filter, gaskets, and gear oil pump
• All components packaged together for convenient, comprehensive servicing
• Designed specifically for Yamaha VF115 SHO engines

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Yamaha owners, here's a guide to help you identify your engine's serial/model: Yamaha Serial Number Guide. You can also review exploded diagrams to verify part numbers: Yamaha Parts Diagrams & Catalog.

Technical Specifications

Package Contents

This service kit includes the following components:

• 5GH-13440-00-00 Oil Filter × 1 View Part →
• MAR-10MEL-00-00 Remote Fuel Filter × 1
• 6D8-24563-00 Fuel Filter × 1 View Part →
• 90430-14M09-00 Gasket × 1
• 90430-08003-00 Lower Unit Drain Gasket × 2
• 24OP149 Gear Oil Pump × 1

Installation Guide

1. Preparation: Ensure the engine is off and cool. Gather necessary tools including wrench set, oil drain pan, and clean rags.
2. Oil Filter Replacement: Locate the oil filter (5GH-13440-00-00) on the engine. Remove the old filter using an oil filter wrench and install the new one, hand-tightening securely.
3. Fuel Filter Service: Replace the remote fuel filter (MAR-10MEL-00-00) by disconnecting fuel lines and swapping the old filter with the new one. Ensure proper orientation following fuel flow direction arrows.
4. Secondary Fuel Filter: Install the fuel filter (6D8-24563-00) in its designated location. Tighten connections to prevent fuel leaks.
5. Lower Unit Drain: Position the drain pan beneath the lower unit and remove the drain plug. Allow old gear oil to drain completely.
6. Gasket Replacement: Remove old gaskets from drain and fill plugs. Install new gaskets (90430-14M09-00 and 90430-08003-00) ensuring clean, dry sealing surfaces.
7. Gear Oil Refill: Using the provided gear oil pump (24OP149), insert the nozzle into the drain hole and pump fresh gear oil until it flows from the vent hole.
8. Plug Installation: Quickly install the vent plug with new gasket first, then install the drain plug with new gasket. Torque to manufacturer specifications.
9. System Check: Prime the fuel system by turning the ignition key without starting. Check all filter connections for leaks.
10. Engine Start: Start the engine and allow it to idle for several minutes. Monitor for unusual sounds or leaks.
11. Final Inspection: Shut down the engine and perform a final visual inspection of all serviced areas. Check oil and fuel filter seating.
12. Disposal: Properly dispose of used oil, filters, and gaskets according to local environmental regulations. Record the service date and engine hours in your maintenance log.

Troubleshooting & FAQ

Q: How do I confirm this service kit fits my Yamaha engine?
A: This kit is specifically designed for the Yamaha VF115 SHO model. Verify your engine model using the serial number plate on your outboard, and cross-reference with our compatibility table above or consult the Yamaha serial number guide linked in this listing.

Q: How often should I perform service using this kit?
A: Follow Yamaha's recommended maintenance schedule, typically every 100 hours of operation or annually, whichever comes first. More frequent service may be required in harsh operating conditions such as saltwater or heavy commercial use.

Q: Can I install this service kit myself or do I need a professional?
A: While experienced boat owners with mechanical knowledge can perform this service, professional installation is recommended to ensure all components are properly installed and torqued to specifications. Improper installation may lead to engine damage or performance issues.

Q: What are the signs that my engine needs servicing with this kit?
A: Common indicators include reduced engine performance, difficulty starting, decreased fuel efficiency, unusual engine noises, or visible contamination in fuel filters. Regular scheduled maintenance prevents these issues from developing.

Q: Are all the gaskets in this kit replaceable, or can I reuse the old ones?
A: Always replace gaskets with the new ones provided in this kit. Reusing old gaskets can lead to leaks, loss of gear oil, or fuel system contamination, potentially causing serious engine damage.

Q: Is this an OEM or aftermarket service kit?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
