Shift Cable Bellows – Fits OMC Cobra 1986–1993 (Replaces 18-2763, 0911826, 0778137)

Aftermarket Shift Cable Bellows – Fits OMC Cobra 1986–1993

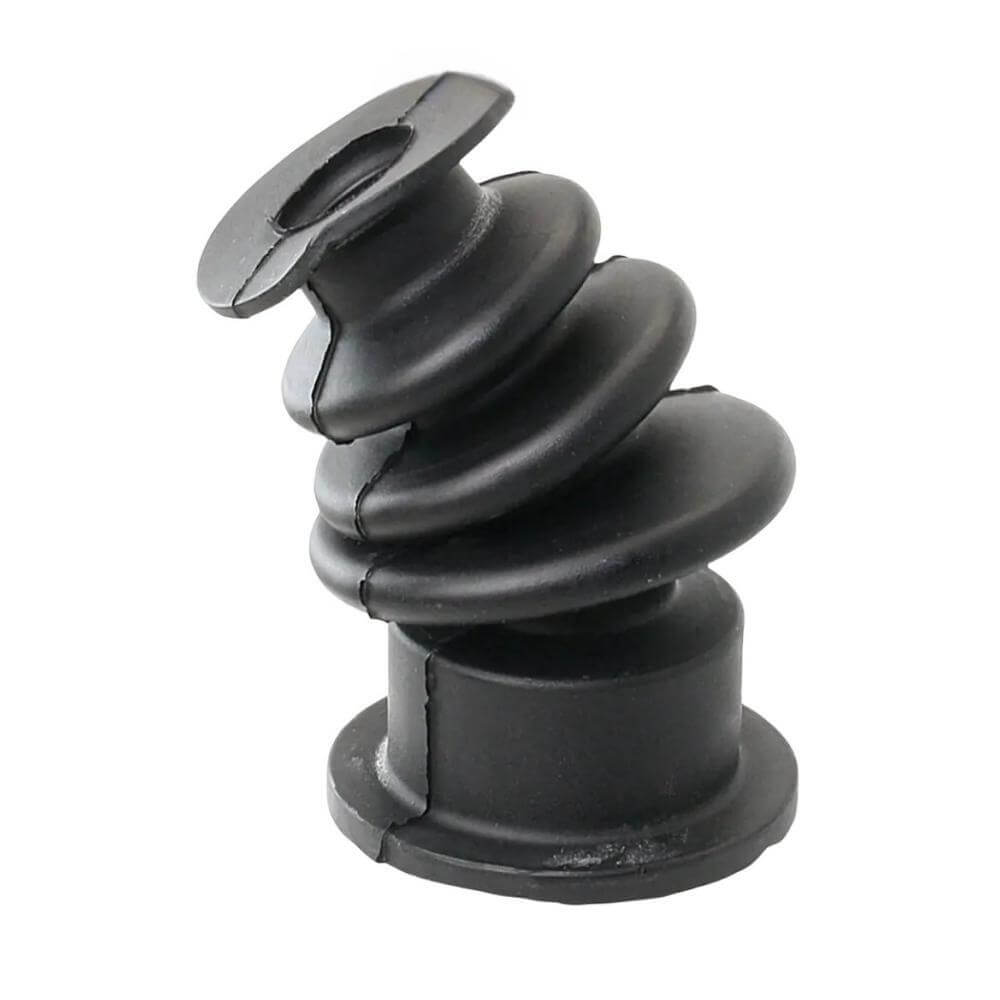

This is anshift cable bellows designed for OMC Cobra 2.3L to 7.5L sterndrive engines, including 4-cylinder, V6, and V8 models from 1986–1993. It is also compatible with select Johnson/Evinrude Outboard applications that utilize a compatible sterndrive system. The bellows is constructed from a durable rubber compound with an accordion-style design, which allows for movement and protects the shift cable from water intrusion.

This component serves as a direct replacement for OEM andpart numbers, including OMC 0911826/0778137, GLM 89210, Mallory 9-72709, and Sierra 18-2763.

• Primary Function: Creates a water-resistant seal to protect the shift cable.
• Installation: Transom-mounted between the engine compartment and sterndrive.
• Construction: Flexible accordion design made from a durable rubber compound.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM andbrands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Johnson/Evinrude owners, here’s a guide to help you identify your engine’s serial/model: Johnson/Evinrude Serial Number Guide.

OMC Cobra Applications

Johnson/Evinrude Compatibility

Technical Specifications

Package Contents

• 1 x Shift Cable Bellows (Replaces OMC P/N 0911826)

Note: This product is sold as a single unit as pictured.

• Gross Weight: 482g
• Retail Box Dimensions: 15cm x 15.5cm x 16cm

Installation Guide

1. Safety First: Disconnect the boat's negative battery terminal before starting work.
2. Access the Bellows: Fully tilt the sterndrive up to gain clear access to the transom assembly and shift cable.
3. Locate the Old Bellows: Identify the shift cable bellows where the cable passes through the transom.
4. Remove Clamps: Loosen and remove the hose clamps from both ends of the old bellows.
5. Remove Old Bellows: Carefully slide the old bellows off the shift cable housing and transom fitting. You may need to cut it if it's brittle.
6. Clean Surfaces: Thoroughly clean the mounting surfaces on the transom fitting and cable housing to ensure a good seal.
7. Install New Bellows: Slide the new bellows over the shift cable and into position.
8. Seat Correctly: Ensure the bellows is properly seated in the grooves on both the transom and cable housing ends.
9. Secure Clamps: Attach and tighten the new hose clamps securely at both ends. Do not overtighten.
10. Final Check: Lower the sterndrive and reconnect the battery terminal.
11. Test Operation: Shift the drive in and out of gear to ensure the cable moves freely without any binding or stretching of the new bellows.

Troubleshooting & FAQ

How do I know if this shift cable bellows is leaking?
Signs of a leak include water in the bilge area, especially after the boat has been in the water. You may also notice visible cracking, perishing, or stiffness in the old bellows material upon inspection.

What happens if a cracked bellows is not replaced?
A failed bellows will allow water to penetrate the transom. This can lead to serious corrosion of the internal shift cable, causing shifting difficulty, and can also lead to water damage within the hull.

Can I use this bellows for my exhaust or u-joint?
No. This part is specifically designed for the smaller diameter of the shift cable. Using it for the exhaust or U-joint bellows would be incorrect and lead to immediate failure. Use only the correct bellows part for each application.

OEM vs. Aftermarket?
This listing is anreplacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

How fast do you ship and how much does it cost?
We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

What is your warranty and return policy?
This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is anreplacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
