Water Pump Impeller Kit – Fits Suzuki 4-Stroke DF250SS/DF300 Outboards (Replaces 17400-98J03/17400-98J04)

Water Pump Impeller Kit – Fits Suzuki 4-Stroke DF250SS/DF300 Outboards

This water pump impeller repair kit is designed for Suzuki Marine 4-Stroke outboard motors, including the DF250SS (2008–Current), DF250AP (2013–Current), DF300 (2007–2011), and DF300AP (2012–Current) models. It provides a reliable solution for maintaining your engine’s cooling system for optimal performance.

This kit serves as a direct replacement for a wide range of Suzuki and aftermarket part numbers, ensuring broad compatibility. See the cross-reference table below for a full list of equivalent parts.

• Engineered for direct-fit installation, replacing the original water pump components without modification.
• Constructed from corrosion-resistant materials, including a stainless steel housing and a durable neoprene rubber impeller for longevity in harsh marine environments.
• The comprehensive kit includes all necessary components for a full water pump service, including the impeller, housing, gaskets, panels, and key.

Part Number Cross-Reference

Use this table to confirm equivalent part numbers across OEM and aftermarket brands.

Compatible Engine Models

Confirm your engine model/year in the table below. For Suzuki owners, you can review exploded diagrams here to verify part numbers: Suzuki Parts Diagrams & Catalog.

Technical Specifications

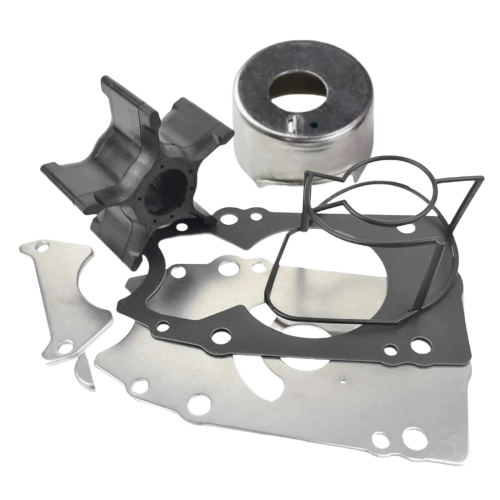

Package Contents

• 1 x Water Pump Case Cup
• 1 x Water Pump Impeller (17461-93J00)
• 1 x Sealing Case (17416-93J00)
• 1 x Impeller Shaft Key (09420-05009)
• 1 x Panel (17473-98J00)
• 1 x Pump Case Under Panel (17471-98J01)
• 1 x Pump Case Panel Gasket (17472-98J00)

Installation Guide

1. Disconnect the Battery: Ensure the engine is off and disconnect the battery terminals to prevent accidental starting.
2. Remove Lower Unit: Drain the gearcase oil, then unbolt and carefully lower the outboard's lower unit (gearcase).
3. Access Water Pump: With the lower unit removed, locate and unbolt the water pump housing cover.
4. Remove Old Components: Take note of the order of parts. Remove the old impeller, wear plate, gaskets, and shaft key.
5. Clean Surfaces: Thoroughly clean the mating surfaces of the housing and plate, removing any old gasket material or debris.
6. Install New Components: Install the new gasket, wear plate, and shaft key. Slide the new impeller onto the driveshaft, turning the shaft clockwise to align the vanes correctly within the housing cup.
7. Reassemble Pump: Apply a light coat of marine grease or soap to the inside of the housing cup. Install the cup and new gasket, then tighten the housing bolts to the manufacturer's specified torque.
8. Reinstall Lower Unit: Reattach the lower unit to the outboard, ensuring the driveshaft and water tube align correctly. Refill the gearcase with fresh oil.
9. Test Operation: Reconnect the battery. Start the engine in water and verify a steady stream of water is exiting the tell-tale port, indicating the cooling system is functioning properly.

Troubleshooting & FAQ

Q: How can I be sure this kit fits my Suzuki outboard?
A: Check your engine model and year against the "Compatible Engine Models" table on this page. For additional certainty, use the Suzuki Parts Diagrams link to visually compare the required part numbers with those listed for your specific engine serial number.

Q: What are the signs that my water pump impeller needs to be replaced?
A: Common signs include the engine overheating at idle or low speeds, a weak or intermittent stream of water from the "tell-tale" outlet, and visible damage such as cracks, stiffness, or melted vanes on the old impeller upon inspection.

Q: How often should I replace the water pump impeller?
A: For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of use. Replacement frequency may depend on operating conditions (e.g., saltwater use may require more frequent changes).

Q: OEM vs. Aftermarket?
A: This listing is an aftermarket replacement part (not an OEM component). We build to OEM specifications using comparable-grade materials. Production is done in an ISO9002-certified facility, and each batch is inspected for consistent performance.

Q: How fast do you ship and how much does it cost?
A: We offer fast global shipping—typically 5–15 days worldwide—and standard shipping is free. Expedited options are available at checkout depending on your location.

Q: What is your warranty and return policy?
A: This product includes a 1-year warranty against manufacturing defects under normal use. If something goes wrong, contact our support team with your order details. Returns are accepted within our standard return window (unused & in original condition); please see our policy page or reach out for instructions.

Important Notes

• Verify that the product images and specifications match your original part. If discrepancies exist—even if your model is listed—do not proceed with the purchase.
• This product is an aftermarket replacement part and is not an OEM component.
• Professional installation is recommended to ensure safety and optimal performance.
